Caterpillar
Mitsubishi
BD2HS-HB1

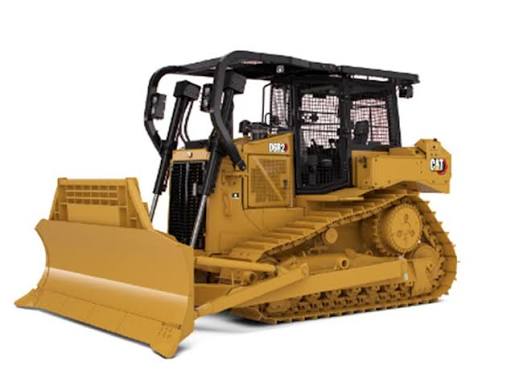

Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Fuel Capacity | 101.2 gal |
|---|---|
| Cooling System Fluid Capacity | 19.6 gal |
| Final Drives Fluid Capacity | 3.6 gal |
| Engine Oil Capacity | 7.3 gal |
| Hydraulic Fluid Capacity | 20.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | 3306 |
|---|---|
| Displacement | 638 in³ |
| Power Measured @ | 1,900 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 50.2 gal/min |
|---|---|
| Relief Valve Pressure | 2,800 psi |
| Pump Type | Piston Style |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length w/o Blade | 152 in |
Transmission
| Max Speed - Forward | 7.4 mph |
|---|---|
| Max Speed - Reverse | 9.5 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Track Pitch | 8 in |
|---|
