Caterpillar

D6T LGP WH

Crawler Dozer

Gross Power
189.0 hp
All crawler dozers

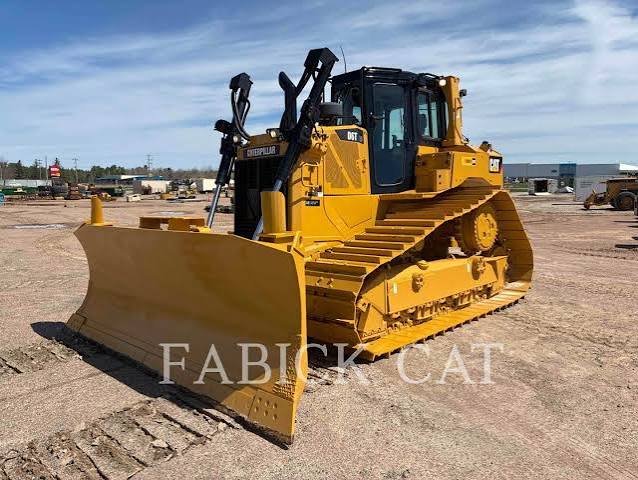

Caterpillar D6T LGP WH Crawler Dozer
1 / 5
Image 1 of 5
Image: forestrytrader.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity101.2 gal
Operating Voltage24 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelC-9 ACERT
Displacement537 in³
Power Measured @2,000 rpm
Gross Power189.0 hp
MakeCat

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Length of Track on Ground111 in
Width Over Tracks104 in
Length w/ Blade202 in
Length w/o Blade161 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Standard Shoe Size36 in
Ground Contact Area4,898 in³

Standard Blade

Standard Blade specifications
Capacity12.20 yd³
