Caterpillar

D6T XL

Crawler Dozer

Max Speed - Forward
7.2 mph
Gross Power
228.0 hp
All crawler dozers

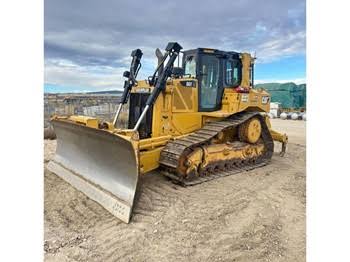

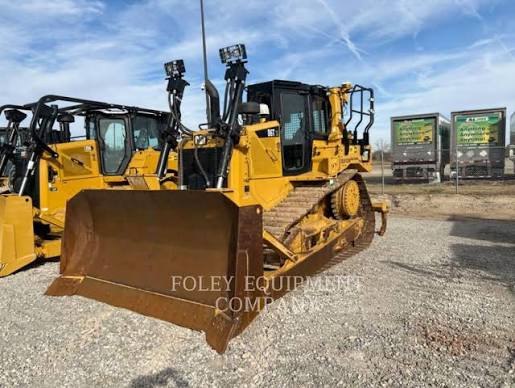

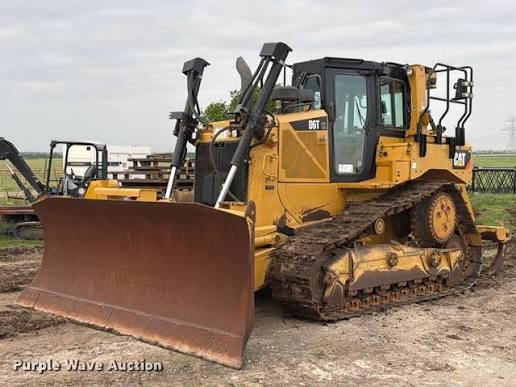

Caterpillar D6T XL Crawler Dozer
1 / 5
Image 1 of 5
Image: surplusrecord.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity112.0 gal
Cooling System Fluid Capacity18.5 gal
Final Drives Fluid Capacity3.6 gal
Engine Oil Capacity7.4 gal
Hydraulic Fluid Capacity13.6 gal
Operating Voltage24 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelC9 ACERT
Displacement537 in³
Power Measured @1,850 rpm
Gross Power228.0 hp
Number of Cylinders6
MakeCat

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity49.9 gal/min

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Length of Track on Ground114 in
Length w/o Blade152 in

Transmission

Transmission specifications
Max Speed - Forward7.2 mph
Max Speed - Reverse9.1 mph

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Number of Shoes per Side41
Standard Shoe Size22 in
Ground Contact Area4,972 in³
Track Pitch8 in
