Caterpillar
Mitsubishi
BD2HS-HB1

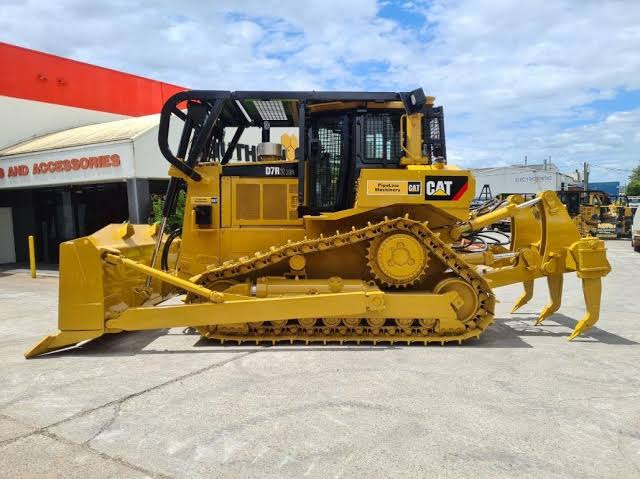

Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Fuel Capacity | 126.5 gal |
|---|---|
| Cooling System Fluid Capacity | 20.4 gal |
| Final Drives Fluid Capacity | 3.4 gal |
| Engine Oil Capacity | 8.2 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | 3176C |
|---|---|
| Displacement | 629 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 258.0 hp |
| Net Power | 240.0 hp |
| Number of Cylinders | 6 |
| Make | Cat |
Hydraulic System
| Pump Flow Capacity | 47.6 gal/min |
|---|
Dimensions
| Ground Clearance | 197 in |
|---|---|
| Height - Top of Cab | 133 in |
| Length of Track on Ground | 144 in |
| Width Over Tracks | 102 in |
| Length w/ Blade | 238 in |
| Length w/o Blade | 186 in |
Transmission
| Max Speed - Forward | 6.6 mph |
|---|---|
| Max Speed - Reverse | 8.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 10 psi |
|---|---|
| Track Gauge | 78 in |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 41 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 5,760 in³ |
| Track Pitch | 9 in |
Standard Blade
| Width | 145 in |
|---|---|
| Height | 60 in |
| Capacity | 9.00 yd³ |
