Caterpillar
Mitsubishi
BD2HS-HB1

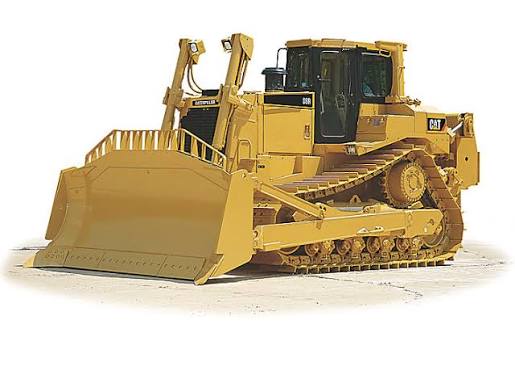

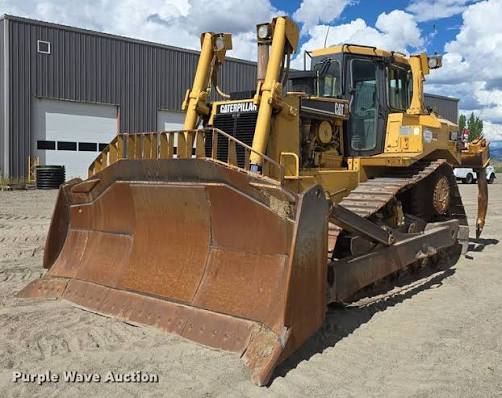

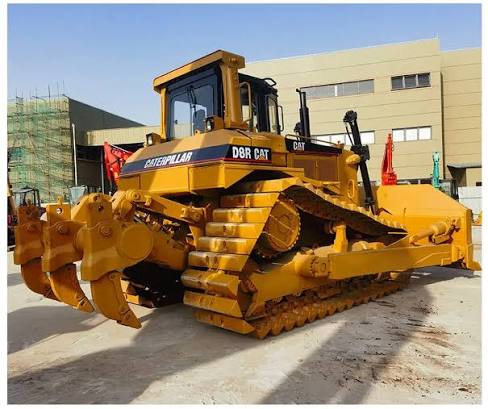

Crawler Dozer
17 specifications

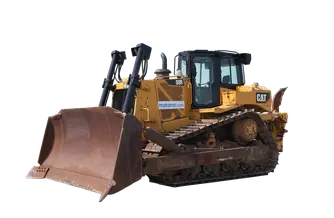

:quality(75)/products/10170/3d_cover/0d3784e6-43fe-497b-933e-3d9ff6bd72ea.png)
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Fuel Capacity | 165.2 gal |
|---|---|
| Cooling System Fluid Capacity | 24.4 gal |
| Final Drives Fluid Capacity | 3.7 gal |
| Engine Oil Capacity | 8.6 gal |
| Hydraulic Fluid Capacity | 19.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
Engine
| Power Measured @ | 2,100 rpm |
|---|---|
| Net Power | 305.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Aftercooled |
Hydraulic System
| Pump Flow Capacity | 79.3 gal/min |
|---|---|
| Relief Valve Pressure | 3,500 psi |
| Pump Type | Piston |
Dimensions
| Length of Track on Ground | 127 in |
|---|---|
| Length w/ Blade | 252 in |
Transmission
| Max Speed - Reverse | 8.6 mph |
|---|---|
| Transmission Type | Power Shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Track Gauge | 83 in |
|---|---|
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 44 |
| Standard Shoe Size | 22 in |
| Track Pitch | 9 in |
Standard Blade
| Width | 156 in |
|---|
