Caterpillar
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5

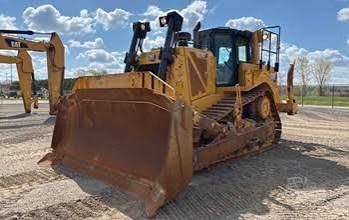

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Fuel Capacity | 170.0 gal |
|---|---|
| Cooling System Fluid Capacity | 20.3 gal |
| Final Drives Fluid Capacity | 3.3 gal |
| Engine Oil Capacity | 10.0 gal |
| Hydraulic Fluid Capacity | 19.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 A |
Engine
| Engine Model | C15 ACERT |
|---|---|
| Displacement | 928 in³ |
| Gross Power | 347.0 hp |
| Make | Cat |
Hydraulic System
| Pump Flow Capacity | 73.0 gal/min |
|---|---|
| Relief Valve Pressure | 5,700 psi |
| Pump Type | piston-type variable displacement |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Height - Top of Cab | 142 in |
| Length of Track on Ground | 127 in |
| Width Over Tracks | 107 in |
| Length w/ Blade | 240 in |
| Length w/o Blade | 182 in |
Transmission
| Max Speed - Forward | 6.6 mph |
|---|---|
| Max Speed - Reverse | 8.8 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Track Gauge | 83 in |
|---|---|
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 5,554 in³ |
| Track Pitch | 9 in |
General Specifications
| Net Power | 354.00 hp (263.98 kw) Starting 2021 Model Year |
|---|---|
| Operating Weight | 87,860.00 lbs (39,852.68 kg) Starting 2021 Model Year |
| Weight lbs (kg) | 87,600 (39,735) Starting 2019 Model Year |
| Engine type | Cat C15 ACERT Starting 2019 Model Year |
| Engine Power HP (KW) | 354 (264) Starting 2019 Model Year |
| Engine | C15 ACERT Starting 2021 Model Year |
| Blade Cap. | 15.4 cu yd Starting 2021 Model Year |
Standard Blade
| Width | 155 in |
|---|---|
| Height | 65 in |
| Capacity | 11.41 yd³ |
