Caterpillar

D8T WH LGP

Crawler Dozer

Operating Weight
85,150 lb
Gross Power
347.0 hp
Net Power
310.0 hp
All crawler dozers

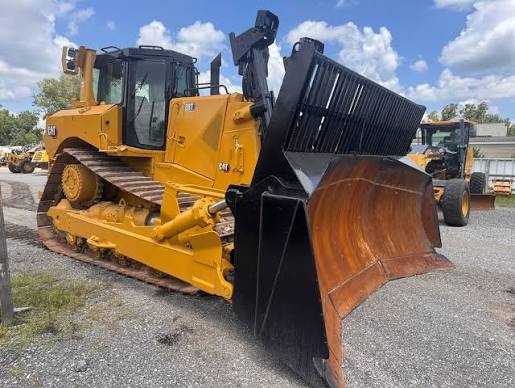

Caterpillar D8T WH LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight85,150 lb
Fuel Capacity170.0 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A

Engine

Engine specifications
Engine ModelC15 ACERT
Displacement928 in³
Power Measured @2,000 rpm
Gross Power347.0 hp
Net Power310.0 hp

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab137 in
Length of Track on Ground126 in
Width Over Tracks104 in
Length w/ Blade240 in
Length w/o Blade183 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Standard Shoe Size38 in
Ground Contact Area9,610 in³

General Specifications

General Specifications specifications
Weight lbs (kg)92,300 (41,867) Starting 2019 Model Year
Engine typeCat C15 ACERT Starting 2019 Model Year
Engine Power HP (KW)354 (264) Starting 2019 Model Year

Standard Blade

Standard Blade specifications
Capacity27.60 yd³
