Caterpillar

E120B

Excavator

Operating Weight
28,219 lb
Max Digging Depth
203 in
Max Digging Depth
220 in
Net Power
84.0 hp
All excavators

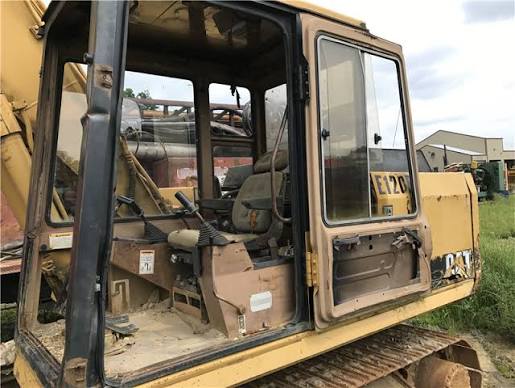

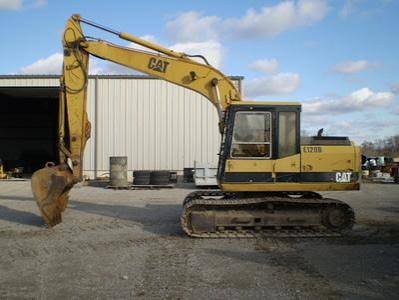

Caterpillar E120B Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,219 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity62.4 gal/min
Hydraulic System Fluid Capacity43.6 gal
Hydraulic System Relief Valve Pressure4,270 psi

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Net Power84.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab107 in
Length of Track on Ground110 in
Tail Swing Radius84 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance37 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Max Travel Speed3.2 mph
Shoe Size20 in
Drawbar Pull21,582 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth203 in
Max Reach Along Ground313 in
Max Loading Height230 in
Max Vertical Wall Digging Depth179 in
Max Cutting Height324 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth220 in
Max Vertical Wall Digging Depth197 in
Max Cutting Height335 in
Max Loading Height240 in
Max Reach Along Ground328 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth239 in
Max Cutting Height343 in
Max Loading Height250 in
Max Vertical Wall Digging Depth211 in
Max Reach Along Ground344 in
