Challenger

LB33

Baler

Bale Width
32 in
Overall Width
78 in
Overall Width
102 in
Overall Height
125 in
All balers

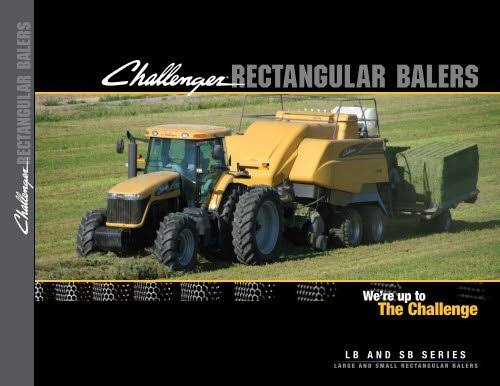

Challenger LB33 Baler
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

21 data points

Dimensions

Dimensions specifications
Overall Length339 in
Overall Width102 in
Overall Height125 in
Weight13,957 lb
Tractor PTO Power Required90.0 hp

Bale Size

Bale Size specifications
Bale Width32 in
Bale Length - max100 in
Bale Height35 in
Bale Weight - max1,501 lb
Bale Weight - min1,001 lb

Baler Pickup

Baler Pickup specifications
Overall Width78 in
Number of Bars4
Tine to Tine Width71 in
Number of Tines112
Lift TypeHydraulic Cylinder

Feeding Chamber

Feeding Chamber specifications
Packer TypeFork type 4 tine

Plunger

Plunger specifications
SPM41
Stroke Length28 in
Bearing Type4 Sealed Tapered Roller Bearings 2 sealed ball baring rollers

Wrapping System

Wrapping System specifications
Twine Ball Capacity20
Twine TypeHesston Double Knot Type
