Challenger

LB44

Baler

Bale Width
47 in
Overall Width
84 in
Overall Width
126 in
Overall Height
145 in
All balers

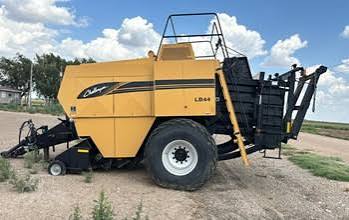

Challenger LB44 Baler
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

20 data points

Dimensions

Dimensions specifications
Overall Length350 in
Overall Width126 in
Overall Height145 in
Weight18,607 lb
Tractor PTO Power Required135.0 hp

Bale Size

Bale Size specifications
Bale Width47 in
Bale Length - max110 in
Bale Height50 in
Bale Weight - max2,000 lb

Baler Pickup

Baler Pickup specifications
Overall Width84 in
Number of Bars5
Tine to Tine Width78 in
Number of Tines120
Lift TypeHydraulic Cylinder

Feeding Chamber

Feeding Chamber specifications
Packer TypeFork type 6 tine

Plunger

Plunger specifications
SPM25
Stroke Length31 in
Bearing Type4 Sealed Tapered Roller Bearings 2 sealed ball bearing rollers

Wrapping System

Wrapping System specifications
Twine Ball Capacity24
Twine TypeHesston Double Knot Type
