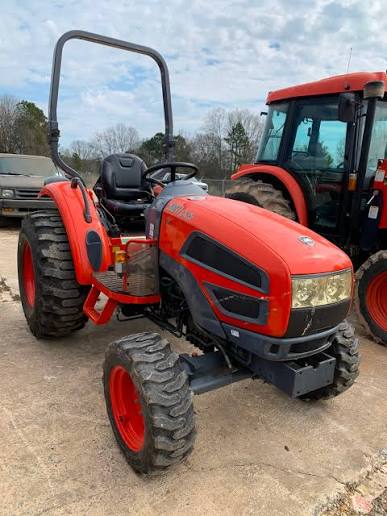

Daedong
CK25 HST
- Operating Weight
- 3,175 lb
- Displacement
- 79 in³
- Power Measured @
- 2,600 rpm
- Gross Power
- 25.0 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 3,175 lb |
|---|---|
| Fuel Capacity | 8.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 1,764 lb |
| Turning Radius | 107 in |
Engine
| Engine Model | TD1300LXE |
|---|---|
| Displacement | 79 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 25.0 hp |
| Number of Cylinders | 3 |
| PTO Power | 18.0 hp |
Hydraulic System
| Pump Flow Capacity | 13.0 gal/min |
|---|
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 94 in |
| Wheelbase | 67 in |
| Overall Length | 11 in |
| Tire Size | front 6-14 rear 9.5-24 |
| Width Outside Frame | 52 in |
Transmission
| Max Speed | 13.4 mph |
|---|---|
| Number of Forward Gears | — |
| Transmission Type | hydrostatic drive |
