Daedong
New Holland
TC35
Tractor
21 specifications
1 / 5

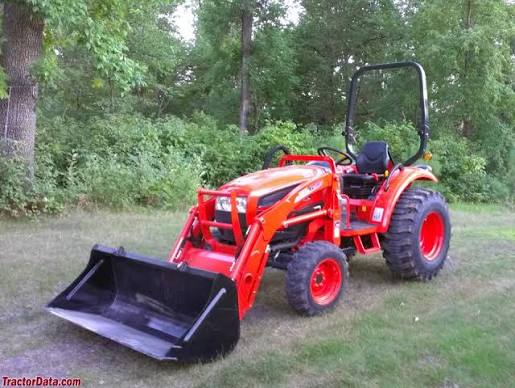

Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 3,252 lb |
|---|---|
| Fuel Capacity | 8.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 1,764 lb |
| Turning Radius | 115 in |
Engine
| Engine Model | 3A165LXD |
|---|---|
| Displacement | 100 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 34.0 hp |
| Number of Cylinders | 3 |
| PTO Power | 27.6 hp |
Hydraulic System
| Pump Flow Capacity | 13.0 gal/min |
|---|
Dimensions
| Ground Clearance | 14 in |
|---|---|
| Height - Top of Cab | 95 in |
| Wheelbase | 67 in |
| Overall Length | 11 in |
| Tire Size | front 7-14 rear 11.2-24 |
| Width Outside Frame | 55 in |
Transmission
| Max Speed | 15.4 mph |
|---|---|
| Number of Forward Gears | 8 |
| Transmission Type | synchroshuttle |
| Number of Reverse Gears | 8 |
