Daedong
DK501(C)
- Operating Weight
- 5,049 lb
- Displacement
- 122 in³
- Power Measured @
- 2,600 rpm
- Gross Power
- 49.0 hp
1 / 5

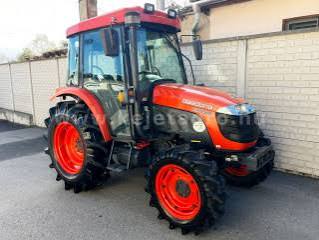

Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 5,049 lb |
|---|---|
| Fuel Capacity | 18.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,654 lb |
| 3 Point Hitch Type | Cat I & I |
Engine
| Engine Model | 4A200TLXB |
|---|---|
| Displacement | 122 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 49.0 hp |
Hydraulic System
| Pump Flow Capacity | 9.9 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 97 in |
| Wheelbase | 76 in |
| Overall Length | 12 in |
| Tire Size | front 9.5-18 rear 13.6-28 |
| Width Outside Frame | 65 in |
Transmission
| Max Speed | 17.9 mph |
|---|---|
| Number of Forward Gears | 12 |
| Transmission Type | synchronized shuttle |
| Number of Reverse Gears | 12 |
