Doosan

DX140LC

Excavator

Operating Weight
30,864 lb
Max Digging Depth
207 in
Max Digging Depth
223 in
Net Power
95.0 hp
All excavators

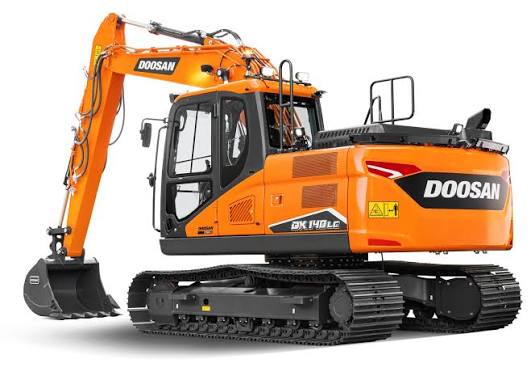

Doosan DX140LC Excavator
1 / 5
Image 1 of 5
Image: product.global-ce.com

Specifications

64 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,864 lb
Fuel Capacity70.6 gal
Hydraulic Pump Flow Capacity60.3 gal/min
Hydraulic System Fluid Capacity39.1 gal
Hydraulic System Relief Valve Pressure4,699 psi
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity5.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelDL06
Displacement359 in³
Power Measured @1,850 rpm
Net Power95.0 hp
Aspirationturbocharged with air to air intercooler
Torque Measured @1,400 rpm
Max Torque322 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab109 in
Length of Track on Ground120 in
Tail Swing Radius88 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side7
Max Travel Speed3.0 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth207 in
Max Reach Along Ground304 in
Max Loading Height231 in
Max Vertical Wall Digging Depth150 in
Max Cutting Height323 in
Shipping Length of Unit304 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth223 in
Max Vertical Wall Digging Depth180 in
Max Cutting Height342 in
Max Loading Height248 in
Max Reach Along Ground322 in
Shipping Length of Unit302 in
Shipping Height of Unit107 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth243 in
Max Cutting Height344 in
Max Loading Height253 in
Max Vertical Wall Digging Depth191 in
Max Reach Along Ground337 in
Shipping Length of Unit301 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth215 in
Max Cutting Height348 in
Max Reach Along Ground325 in
Max Loading Height253 in
Max Vertical Wall Dig Depth190 in
Shipping Length of Unit318 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth230 in
Max Reach Along Ground342 in
Max Cutting Height364 in
Max Loading Height269 in
Max Vertical Wall Dig Depth214 in
Shipping Height of Unit109 in
Shipping Length of Unit316 in
