Doosan

SOLAR 55-VP

Mini Excavator

Operating Weight
12,125 lb
Max Digging Depth
150 in
Gross Power
53.2 hp
Net Power
51.1 hp
All mini excavators

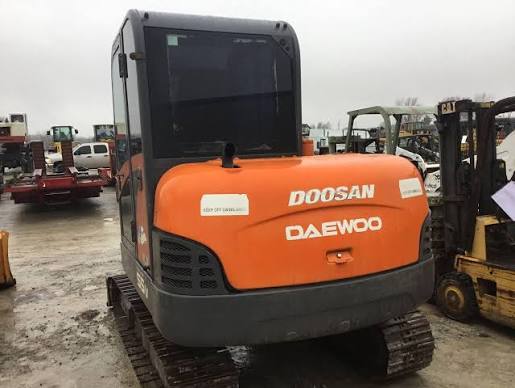

Doosan SOLAR 55-VP Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,125 lb
Fuel Capacity30.4 gal
Hydraulic Pump Flow Capacity29.1 gal/min
Hydraulic System Fluid Capacity21.2 gal
Hydraulic System Relief Valve Pressure2,986 psi
Operating Voltage12 V
Engine Oil Capacity2.6 gal
Cooling System Fluid Capacity2.7 gal
Swing Drive Fluid Capacity0.4 gal

Engine

Engine specifications
Engine Model4TNV94L-XDB
Displacement169 in³
Power Measured @2,200 rpm
Gross Power53.2 hp
Net Power51.1 hp
Number of Cylinders4
Aspirationnatural
Torque Measured @1,400 rpm
Max Torque145 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Tail Swing Radius66 in
Width to Outside of Tracks74 in
Removal Counterweight Clearance26 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5
Max Travel Speed2.4 mph
Shoe Size16 in
Number of Shoes per Side38
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth150 in
Max Vertical Wall Digging Depth121 in
Max Loading Height159 in
Shipping Length of Unit230 in
Max Cutting Height228 in
Shipping Height of Unit96 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
