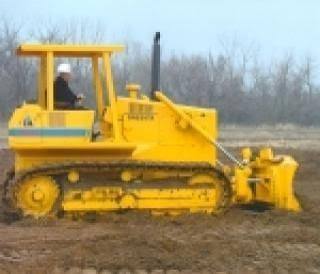

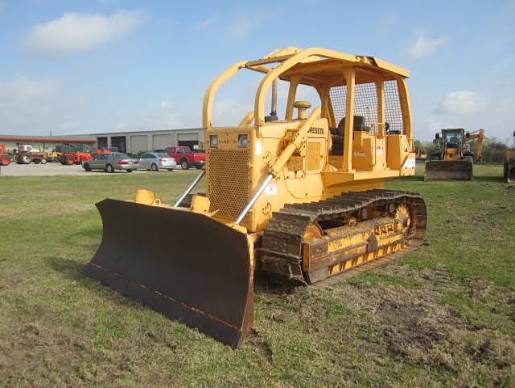

Dressta
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Fuel Capacity | 65.0 gal |
|---|---|
| Cooling System Fluid Capacity | 11.5 gal |
| Final Drives Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | S6D102E-1 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 152.0 hp |
| Net Power | 142.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 406 lb-ft |
Dimensions
| Height - Top of Cab | 130 in |
|---|---|
| Width Over Tracks | 96 in |
Transmission
| Max Speed - Forward | 6.5 mph |
|---|---|
| Max Speed - Reverse | 7.7 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Shoes per Side | 42 |
| Standard Shoe Size | 22 in |
| Ground Contact Area | 4,840 in³ |
