Dressta
Komatsu
D87E-3
Crawler Dozer
41 specifications
Dressta
TD-25M
- Operating Weight
- 79,873 lb
- Max Speed - Forward
- 6.4 mph
- Gross Power
- 375.0 hp
- Net Power
- 330.0 hp
1 / 5

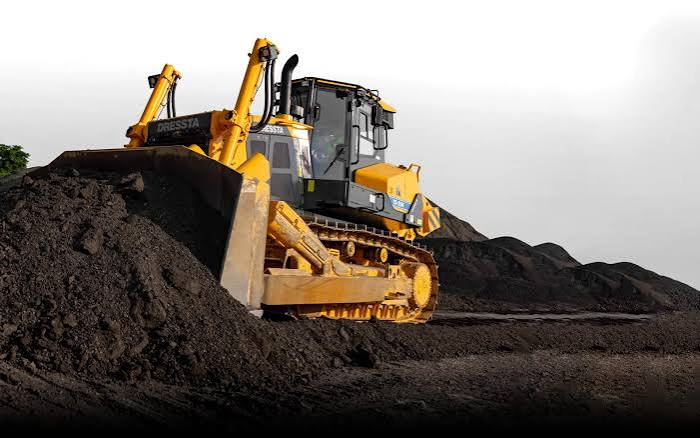

Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 79,873 lb |
|---|---|
| Fuel Capacity | 218.0 gal |
| Cooling System Fluid Capacity | 15.0 gal |
| Final Drives Fluid Capacity | 16.9 gal |
| Engine Oil Capacity | 13.0 gal |
| Hydraulic Fluid Capacity | 34.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | QSX15 |
|---|---|
| Displacement | 912 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 375.0 hp |
| Net Power | 330.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and CAC |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 1.0 gal/min |
|---|---|
| Relief Valve Pressure | 1 psi |
| Pump Type | Multiple vane pumps driven from torque converter |
Dimensions
| Height - Top of Cab | 150 in |
|---|---|
| Width Over Tracks | 126 in |
| Length w/o Blade | 199 in |
Transmission
| Max Speed - Forward | 6.4 mph |
|---|---|
| Max Speed - Reverse | 7.6 mph |
| Transmission Type | Modular countershaft type power shift electro-hydraulic control. |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 15 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 38 |
| Standard Shoe Size | 22 in |
| Ground Contact Area | 5,456 in³ |
Standard Blade
| Width | 172 in |
|---|---|
| Height | 69 in |
| Capacity | 15.00 yd³ |
| Blade Angle (both directions) | 25 ° |
