Dynapac

CA702D

Smooth Drum Roller

Operating Weight
59,304 lb
Max Speed
5.0 mph
Gross Power
220.0 hp
All smooth drum rollers

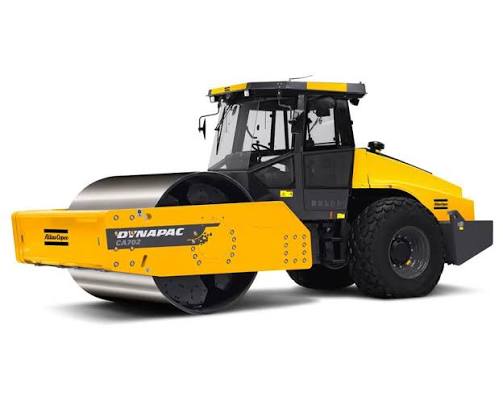

Dynapac CA702D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight59,304 lb
Max Speed5.0 mph
Fuel Capacity84.6 gal
Operating Width95 in

Engine

Engine specifications
Engine ModelQSB 6.7 T3
Power Measured @2,200 rpm
Gross Power220.0 hp
Aspirationwater cooled turbo diesel with after cooler

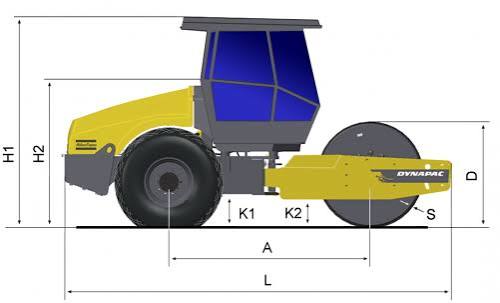

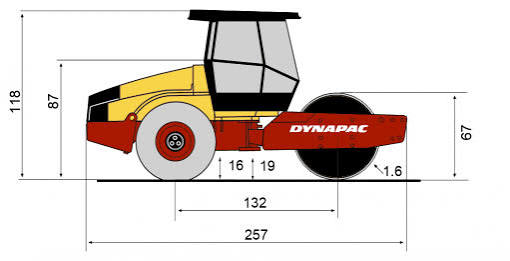

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab118 in
Wheelbase11 in
Overall Length22 in
Overall Width90 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26

General Specifications

General Specifications specifications
Engine typeCummins QSB6.7 T3 — Starting 2016 Model Year
DRUM WIDTH IN. (CM)84 (213) — Starting 2016 Model Year
INSIDE TURN RADIUS IN. (CM)146 (370) — Starting 2016 Model Year
WIDTH IN. (CM)95 (241) — Starting 2016 Model Year
FREQUENCY HZ1,680/1,800 vpm — Starting 2016 Model Year

Drum

Drum specifications
Drum Diameter67 in
Vibration Frequency 128 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High74,187 lb
Vibration Frequency 230 vpm
Vibration Frequency28 – 30 vpm
Centrifugal Force - Low57,102 lb
Nominal Amplitude - Low0 in
Frequency28 – 30 vpm
