Dynapac
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 5,071 lb |
|---|---|
| Max Speed | 4.4 mph |
| Fuel Capacity | 13.3 gal |
Engine
| Engine Model | D2011 L02 I |
|---|---|
| Power Measured @ | 2,800 rpm |
| Gross Power | 29.0 hp |
| Aspiration | air cooled |
| Make | Deutz |

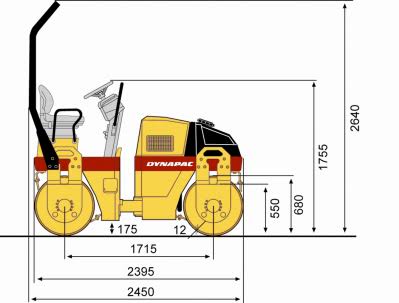

Dimensions
| Ground Clearance | 7 in |
|---|---|
| Height - Top of Cab | 104 in |
| Wheelbase | 6 in |
| Overall Length | 8 in |
| Overall Width | 42 in |
| Turning Radius - Inside | 8 in |
Tires & Wheels
| Tires | 640x240-15 |
|---|
Drum
| Drum Width | 42 in |
|---|---|
| Static Linear Load | 5 lb-ft |
| Vibration Frequency 1 | 57 vpm |
| Frequency | 58 – 67 vpm |
| Centrifugal Force - MEd | 5,171 lb |
| Nominal Amplitude - Med | 0 in |
