Dynapac

CP142

Pneumatic Roller

Max Speed
11.9 mph
Gross Power
99.3 hp
Overall Length
12 in
Overall Width
70 in
All pneumatic rollers

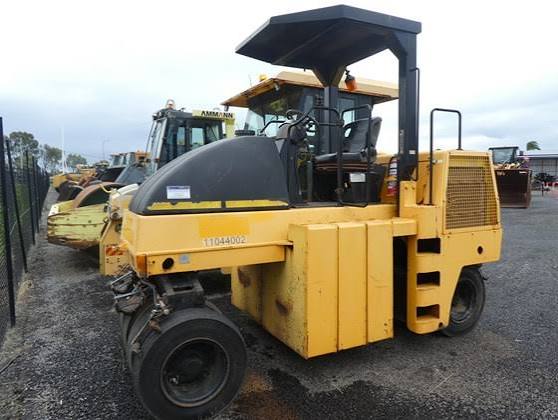

Dynapac CP142 Pneumatic Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Max Speed11.9 mph
Fuel Capacity37.0 gal
Water Spray Tank Fluid Capacity132.1 gal
Operating Width69 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB4.5 T
Power Measured @2,200 rpm
Gross Power99.3 hp
AspirationTurbocharged
MakeCummins

Weights

Weights specifications
Operating Weight - standard13,228 lb
Operating Weight - max ballast30,865 lb
Average Weight per Wheel - Max Ballast3,439 lb
Average Weight per Wheel - Standard1,477 lb

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase109 in
Overall Length12 in
Overall Width70 in
Height - Top of ROPS/FOPS119 in
Turning Radius - Inside151 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Front5
Number of Tires - Rear4
Wheel Track/Tire Overlap1 in
Standard Tire Size7.50-15
Oscillation Angle3 °

Drum

Drum specifications
Drum Width69 in
