Dynapac

CP2100W

Pneumatic Roller

Max Speed
14.3 mph
Gross Power
119.4 hp
Overall Length
204 in
Overall Width
90 in
All pneumatic rollers

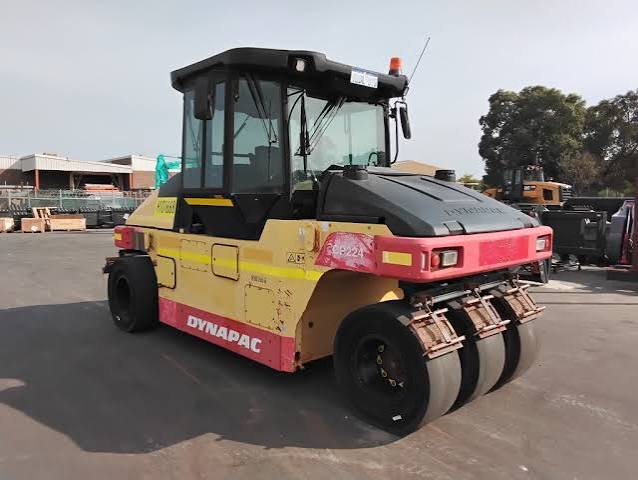

Dynapac CP2100W Pneumatic Roller
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Max Speed14.3 mph
Fuel Capacity55.5 gal
Water Spray Tank Fluid Capacity109.7 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelQSB 3.8
Power Measured @2,200 rpm
Gross Power119.4 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

Weights

Weights specifications
Operating Weight - standard20,834 lb
Operating Weight - max ballast46,297 lb

Dimensions

Dimensions specifications
Wheelbase158 in
Overall Length204 in
Overall Width90 in
Height - Top of ROPS/FOPS119 in
Turning Radius - Outside316 in

Compaction

Compaction specifications
Rolling width89 in
Wheel loads - with max. ballast6,614 lb
Wheel loads_without ballast2,976 lb
Water spray system spray nozzleone per tyre
Min - Tyre pressure36 psi
Tyre overlap2 in
Water spray system typePressurized
Max - Tyre pressure123 psi

General Specifications

General Specifications specifications
Engine typeCummins QSF 3.8 (T4f) — Starting 2024 Model Year
DRUM WIDTH IN. (CM)89 (226) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)250 (635) (Outside Radius) — Starting 2024 Model Year
WIDTH IN. (CM)89 (226) — Starting 2019 Model Year
