Dynapac

CP22

Pneumatic Roller

Max Speed
18.1 mph
Overall Length
16 in
Overall Width
72 in
All pneumatic rollers

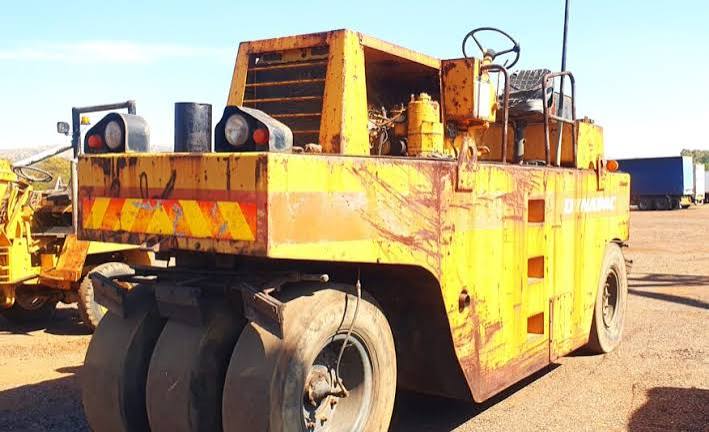

Dynapac CP22 Pneumatic Roller
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Max Speed18.1 mph
Fuel Capacity40.7 gal
Water Spray Tank Fluid Capacity97.8 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelOM-366
Power Measured @2,500 rpm
Net Power100.6 hp
Number of Cylinders6

Weights

Weights specifications
Operating Weight - standard17,769 lb
Operating Weight - max ballast46,297 lb
Average Weight per Wheel - Max Ballast6,614 lb
Average Weight per Wheel - Standard2,538 lb

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase150 in
Overall Length16 in
Overall Width72 in
Height - Top of ROPS/FOPS106 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear4
Number of Tires - Front3
Wheel Track/Tire Overlap2 in
Standard Tire Size11.00X20-18ply
