Dynapac

CP221

Pneumatic Roller

Max Speed
14.3 mph
Gross Power
99.3 hp
Overall Length
16 in
Overall Width
72 in
All pneumatic rollers

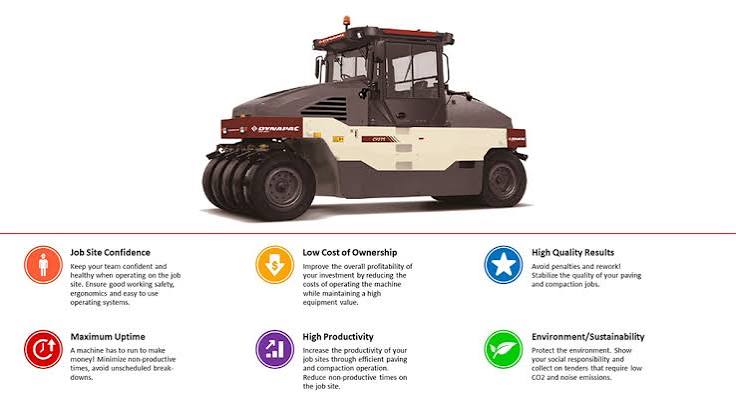

Dynapac CP221 Pneumatic Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Max Speed14.3 mph
Fuel Capacity31.8 gal
Water Spray Tank Fluid Capacity109.7 gal
Operating Width72 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB4.5 T
Power Measured @2,200 rpm
Gross Power99.3 hp
AspirationTurbocharged
MakeCummins

Weights

Weights specifications
Operating Weight - standard18,298 lb
Operating Weight - max ballast46,297 lb
Average Weight per Wheel - Max Ballast6,614 lb
Average Weight per Wheel - Standard2,601 lb

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase150 in
Overall Length16 in
Overall Width72 in
Height - Top of ROPS/FOPS131 in
Turning Radius - Inside197 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear4
Number of Tires - Front3
Wheel Track/Tire Overlap2 in
Standard Tire Size13/80 R20Radial

Drum

Drum specifications
Drum Width72 in
