Dynapac

CP275

Pneumatic Roller

Max Speed
11.2 mph
Gross Power
124.8 hp
Overall Length
209 in
Overall Width
94 in
All pneumatic rollers

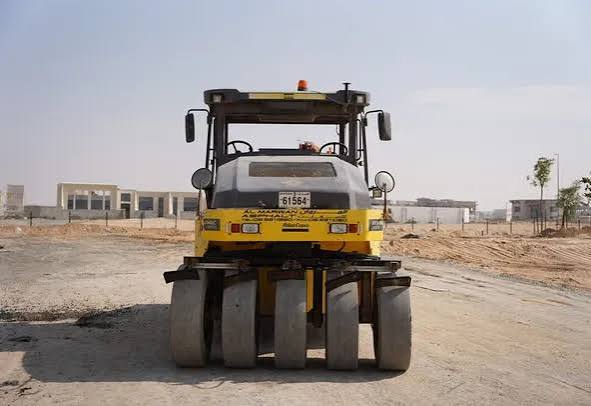

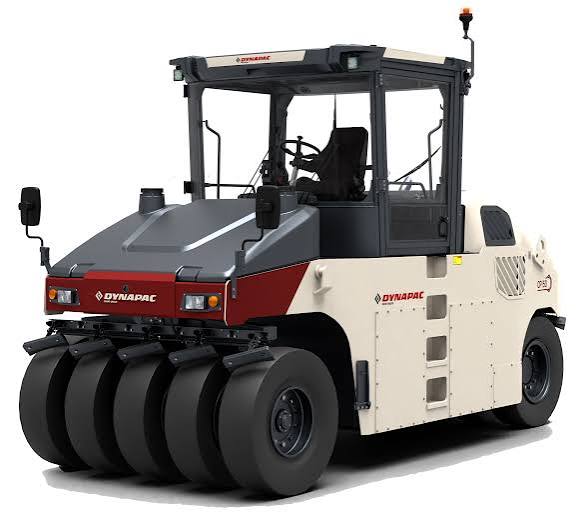

Dynapac CP275 Pneumatic Roller
1 / 5
Image 1 of 5
Image: machanx.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Max Speed11.2 mph
Fuel Capacity84.6 gal
Water Spray Tank Fluid Capacity158.6 gal
Operating Voltage24 V

Engine

Engine specifications
Engine Model4BTAA3.9-C125
Power Measured @2,200 rpm
Gross Power124.8 hp
Engine MakeCummins
Engine TypeTurbocharged and Charge Air Cooled

Weights

Weights specifications
Operating Weight - standard30,865 lb
Operating Weight - max ballast66,139 lb

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase168 in
Overall Length209 in
Overall Width94 in
Height - Top of ROPS/FOPS122 in
Turning Radius - Outside355 in

Compaction

Compaction specifications
Rolling width93 in
Wheel loads - with max. ballast7,348 lb
Wheel loads_without ballast3,430 lb
Water spray system spray nozzleOne per tyre
Min - Tyre pressure55 psi
Tyre overlap2 in
Water spray system typePressurized
Max - Tyre pressure113 psi
