Fendt

206 F

Tractor

Operating Weight
5,743 lb
Displacement
198 in³
Power Measured @
2,300 rpm
Gross Power
64.4 hp
All tractors

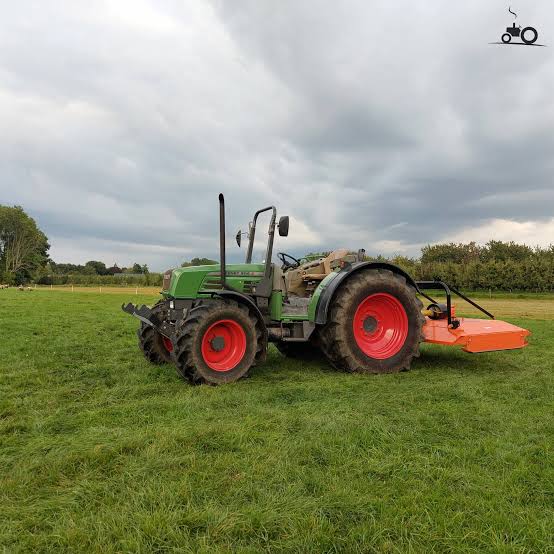

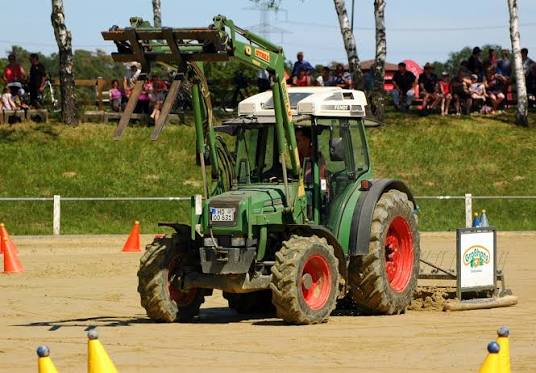

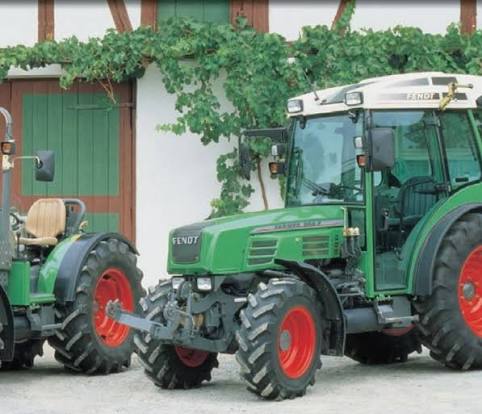

Fendt 206 F Tractor
1 / 5
Image 1 of 5
Image: tractordata.site

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,743 lb
Fuel Capacity18.5 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Displacement198 in³
Power Measured @2,300 rpm
Gross Power64.4 hp
Net Power59.1 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque176 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.6 gal/min
Relief Valve Setting2,901 psi

Dimensions

Dimensions specifications
Wheelbase80 in
Overall Length11 in
Overall Width53 in
Height - Top of ROPS/FOPS96 in
Height90 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears20
Transmission TypeOverdrive fully synchromesh close-ratio
Number of Reverse Gears6
