Fendt

206 FA

Tractor

Operating Weight
5,743 lb
Displacement
198 in³
Power Measured @
2,300 rpm
Gross Power
64.4 hp
All tractors

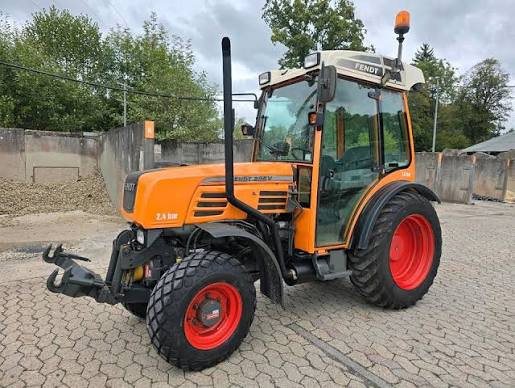

Fendt 206 FA Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,743 lb
Fuel Capacity18.5 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Displacement198 in³
Power Measured @2,300 rpm
Gross Power64.4 hp
Net Power59.1 hp
Number of Cylinders3
Torque Rise31.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.6 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Height - Top of Cab96 in
Wheelbase80 in
Overall Length11 in
Width Outside Frame53 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears20
Transmission TypeOverdrive fully synchronmesh close-ratio
Number of Reverse Gears6
