Fendt

307 Ci

Tractor

Displacement
247 in³
Power Measured @
2,300 rpm
Gross Power
91.2 hp
All tractors
Fendt 307 Ci Tractor
1 / 5

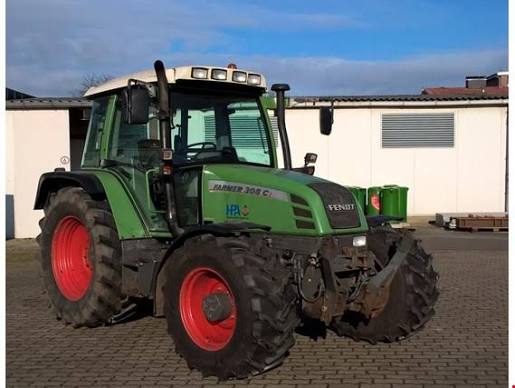

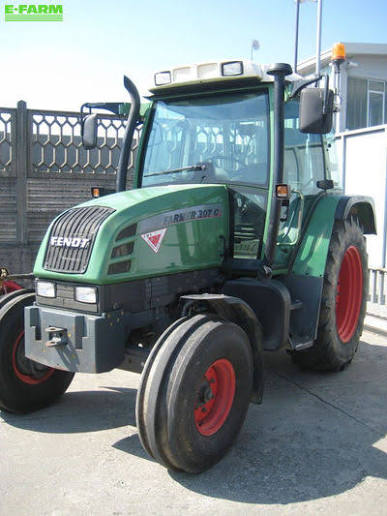

Image 1 of 5
Image: lesnik-lenart.si

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity29.1 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Displacement247 in³
Power Measured @2,300 rpm
Gross Power91.2 hp
Net Power79.2 hp
Number of Cylinders4
Torque Measured @1,500 rpm
Max Torque312 lb-ft
Torque Rise45.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.5 gal/min
Relief Valve Pressure2,901 psi
Relief Valve Setting2,901 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab107 in
Overall Length13 in
Overall Width83 in
Width Outside Frame83 in
Height - Top of ROPS/FOPS107 in
Height103 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears21
Number of Reverse Gears6
