Furukawa

FD40P

Crawler Dozer

Operating Weight
9,348 lb
Gross Power
40.0 hp
All crawler dozers

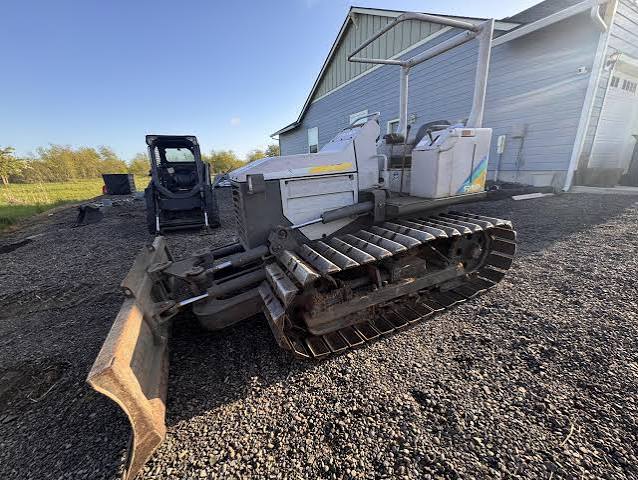

Furukawa FD40P Crawler Dozer
1 / 5
Image 1 of 5
Image: bid.barnoneauction.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,348 lb

Engine

Engine specifications
Engine Model4JB1
Displacement169 in³
Power Measured @2,200 rpm
Gross Power40.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Length of Track on Ground67 in
Width Over Tracks79 in
Length w/ Blade138 in
Length w/o Blade97 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears3
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Track Gauge59 in
Number of Track Rollers per Side5
Standard Shoe Size20 in
Track Pitch5 in

Standard Blade

Standard Blade specifications
Width101 in
Height23 in
