Grove

GMK3055

All Terrain Crane

Gross Power
349.0 hp
Max Lift Capacity
103,000 lb
Max Speed - Forward
52.9 mph
Transport Width
101 in
All all terrain cranes

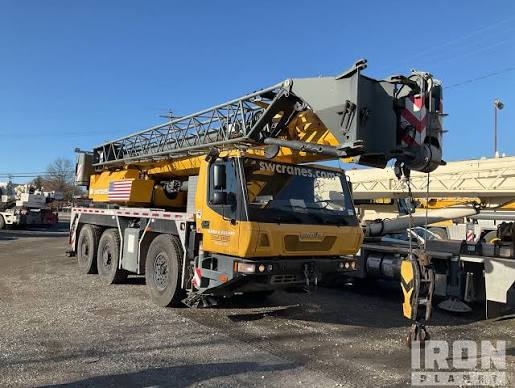

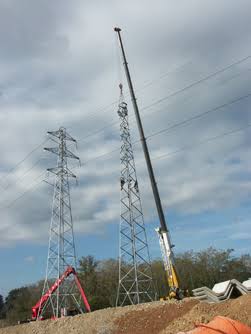

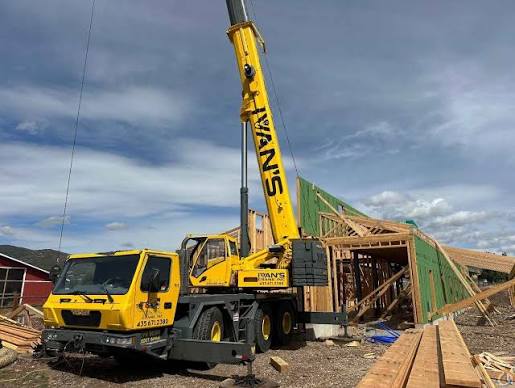

Grove GMK3055 All Terrain Crane
1 / 5
Image 1 of 5
Image: machineryline.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Tire Size385/95 R25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels3
Alternator Supplied Amperage100 A

Dimensions

Dimensions specifications
Transport Width101 in
Transport Height145 in
Transport Length430 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius131 in
Carrier Length342 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeZF AS Tronic
Number of Forward Gears12
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity103,000 lb
Number of Sections6
Max Height @ Max Raise Angle - no jib1,692 in
Min Height @ Max Raise Angle384 in
Max Elevating Angle83 °
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius1,440 in
Height2,402 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power349.0 hp
Max Torque1,276 lb-ft
Torque Measured @1,080 rpm
MakeGrove
Power Measured @1,800 rpm
