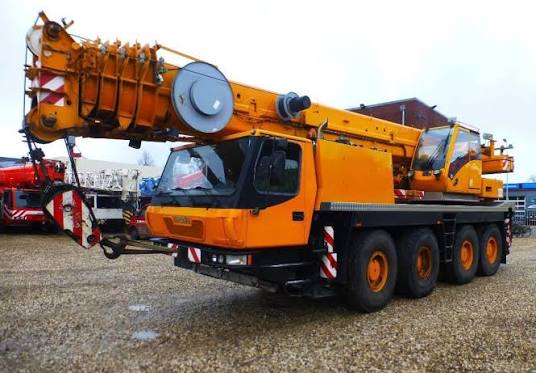

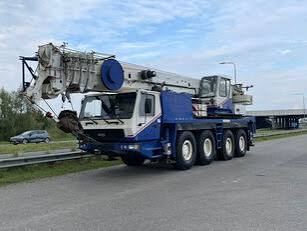

Grove
Terex
ATT 400
All Terrain Crane
25 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Tire Size | 14.00 R25 |
|---|---|
| Carrier Fuel Capacity | 105.7 gal |
| Operating Voltage | 24 V |
| Number of Axels | 4 |
| Alternator Supplied Amperage | 100 A |
Dimensions
| Transport Width | 101 in |
|---|---|
| Transport Height | 150 in |
| Transport Length | 504 in |
| Width w/ Outriggers Extended | 276 in |
| Upper Structure Tail Swing Radius | 139 in |
| Carrier Length | 407 in |
Transmission
| Transmission Type | ZF-AS TRONIC automatic |
|---|---|
| Number of Forward Gears | 12 |
| Number of Reverse Gears | 2 |
Boom
| Number of Sections | 5 |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,702 in |
| Min Height @ Max Raise Angle | 442 in |
| Max Elevating Angle | 82 ° |
CARRIER ENGINE
| Gross Power | 422.5 hp |
|---|---|
| Max Torque | 1,475 lb-ft |
| Torque Measured @ | 1,080 rpm |
| Make | Grove |
| Power Measured @ | 1,800 rpm |
