Grove

GMK4080

All Terrain Crane

Gross Power
335.3 hp
Transport Width
109 in
All all terrain cranes

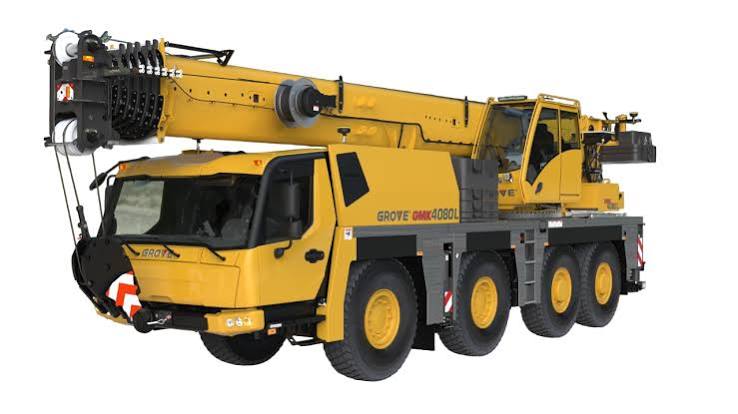

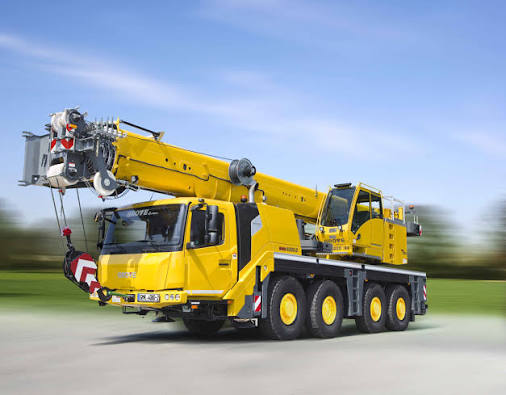

Grove GMK4080 All Terrain Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R25
Carrier Fuel Capacity132.1 gal
Operating Voltage28 V
Number of Axels4
Alternator Supplied Amperage80 A
Upper Structure Fuel Capacity52.9 gal

Dimensions

Dimensions specifications
Transport Width109 in
Transport Height148 in
Transport Length515 in
Width w/ Outriggers Extended284 in
Upper Structure Tail Swing Radius143 in
Carrier Length425 in

Transmission

Transmission specifications
Transmission TypeZF Automatic
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib1,693 in
Min Height @ Max Raise Angle442 in
Max Elevating Angle84 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power335.3 hp
Max Torque1,106 lb-ft
Torque Measured @1,200 rpm
MakeGrove
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power135.5 hp
MakeGrove
Max Torque417 lb-ft
Torque Measured @1,600 rpm
Power Measured @1,800 rpm
