Grove

GMK4100

All Terrain Crane

Gross Power
395.7 hp
Max Lift Capacity
220,462 lb
Transport Width
158 in
All all terrain cranes

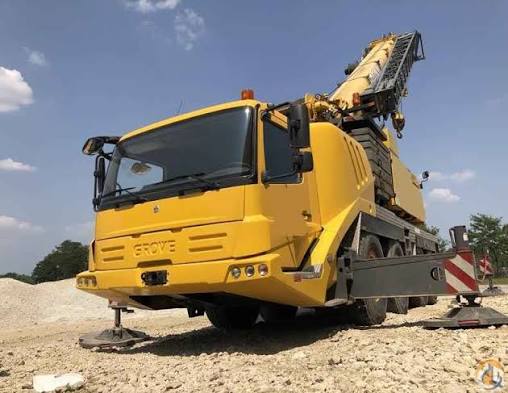

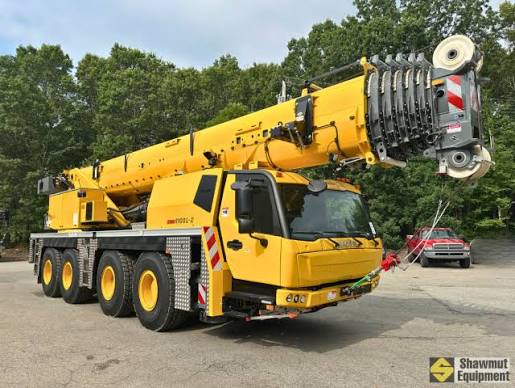

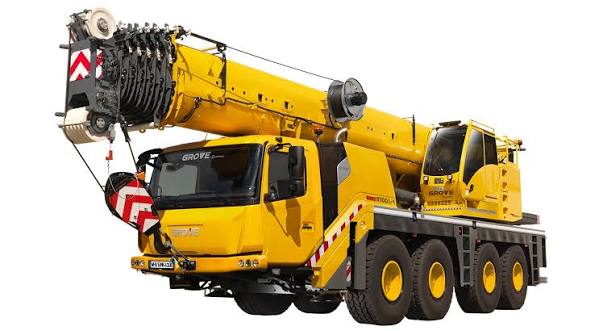

Grove GMK4100 All Terrain Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Tire Size8 tires 14.00 R 25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels4
Alternator Supplied Amperage80 A

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width158 in
Transport Height156 in
Transport Length517 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius154 in
Carrier Length424 in

Transmission

Transmission specifications
Transmission TypeDaimler Chrysler G 240-16
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity220,462 lb
Max Height @ Max Raise Angle - no jib2,048 in
Min Height @ Max Raise Angle445 in
Max Elevating Angle82 °
Height2,556 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power395.7 hp
Max Torque1,401 lb-ft
Torque Measured @1,300 rpm
MakeGrove
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power173.0 hp
MakeGrove
Max Torque428 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
