Grove

GMK5275

All Terrain Crane

Max Speed - Forward
52.9 mph
Transport Width
100 in
All all terrain cranes

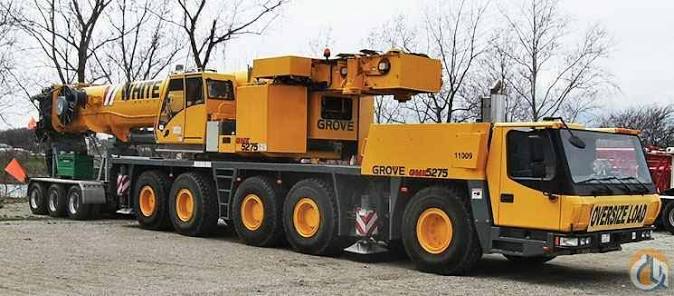

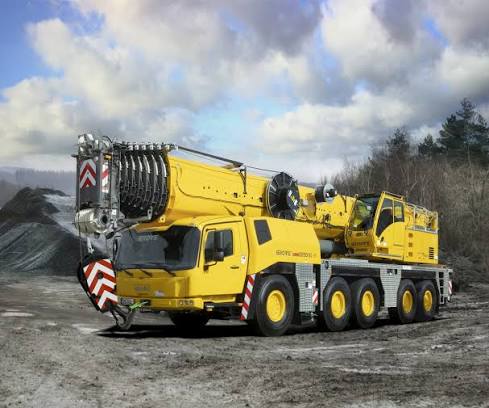

Grove GMK5275 All Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Voltage24 V
Number of Axels5
Alternator Supplied Amperage100 A
Upper Structure Fuel Capacity60.8 gal

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width100 in
Carrier Length528 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeAllison
Number of Forward Gears6
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections7
Max Height @ Max Raise Angle - no jib2,796 in
Min Height @ Max Raise Angle600 in
Max Elevating Angle83 °
Swing Speed1 rpm
Min Working Radius96 in
Max Working Radius2,400 in

CARRIER ENGINE

CARRIER ENGINE specifications
Torque Measured @1,300 rpm
MakeGrove
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
Torque Measured @1,200 rpm
Power Measured @2,200 rpm
