Grove

S4000

Carrydeck Crane

Gross Power
18.0 hp
Operating Weight
5,620 lb
Max Lift Capacity
4,000 lb
Max Speed - Forward
6.0 mph
All carrydeck cranes

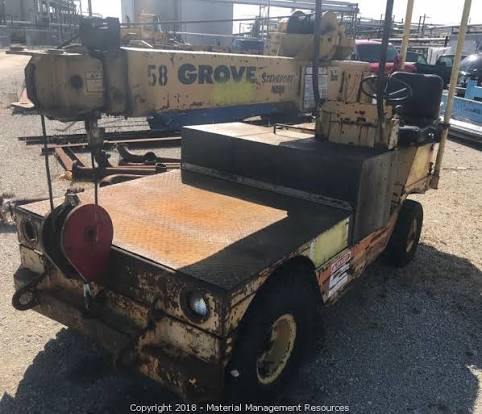

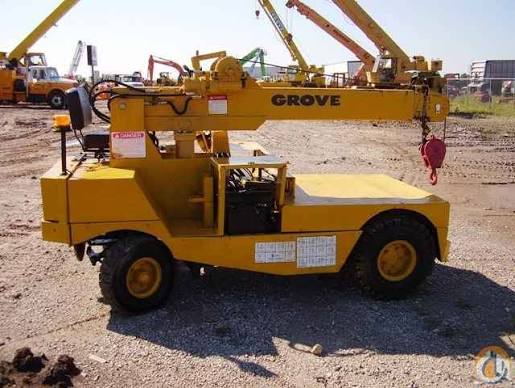

Grove S4000 Carrydeck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,620 lb
Operating Voltage12 V
Tire Size(F) 7.5X10-10PR (R) 6.9X9-6PR
Carrier Fuel Capacity13.5 gal
Number of Axels2
Carrier Hydraulic System Fluid Capacity24.0 gal

Dimensions

Dimensions specifications
Ground Clearance6 in
Transport Width48 in
Transport Height71 in
Transport Length132 in

Transmission

Transmission specifications
Max Speed - Forward6.0 mph
Transmission TypeHydrostatic

Boom

Boom specifications
Max Lift Capacity4,000 lb
Max Elevating Angle60 °
Max Height @ Max Raise Angle - no jib217 in
Min Height @ Max Raise Angle95 in
Number of Sections3
Max Working Radius120 in
Min Working Radius24 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power18.0 hp
Displacement49 in³
MakeGrove
Power Measured @3,600 rpm
Max Torque32 lb-ft
Torque Measured @2,200 rpm
