Grove
XCMG
QY70K
Truck Crane
Specifications pending
1 / 5

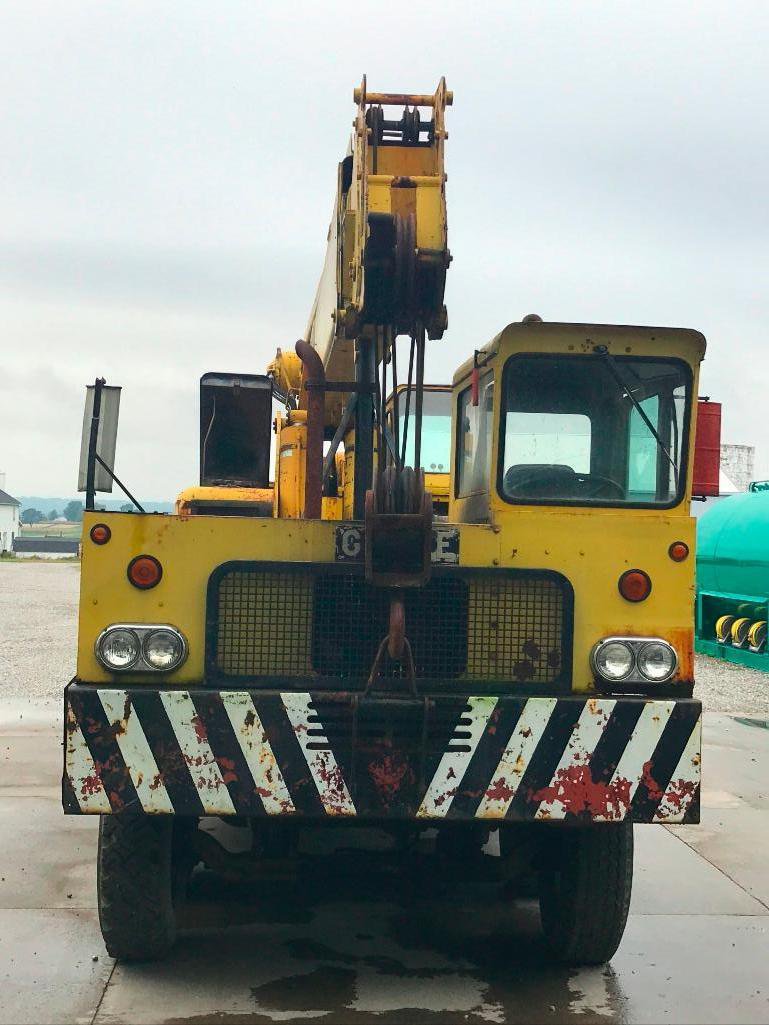

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Voltage | 12 V |
|---|---|
| Carrier Fuel Capacity | 60.0 gal |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Transport Height | 144 in |
| Width w/ Outriggers Extended | 180 in |
| Upper Structure Tail Swing Radius | 94 in |
Transmission
| Max Speed - Reverse | 6.4 mph |
|---|---|
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 1 |
| Transmission Type | Fuller |
Boom
| Max Lift Capacity | 50,000 lb |
|---|---|
| Max Elevating Angle | 75 ° |
| Number of Sections | 4 |
| Swing Speed | 3 rpm |
| Min Working Radius | 120 in |
| Max Working Radius | 900 in |
CARRIER ENGINE
| Displacement | 501 in³ |
|---|---|
| Power Measured @ | 3,000 rpm |
| Make | Grove |
| Max Torque | 451 lb-ft |
| Torque Measured @ | 1,600 rpm |
UPPER STRUCTURE ENGINE
| Make | Grove |
|---|---|
| Power Measured @ | 2,800 rpm |
| Torque Measured @ | 2,000 rpm |
