Grove
XCMG
QY70K
Truck Crane
Specifications pending
1 / 5

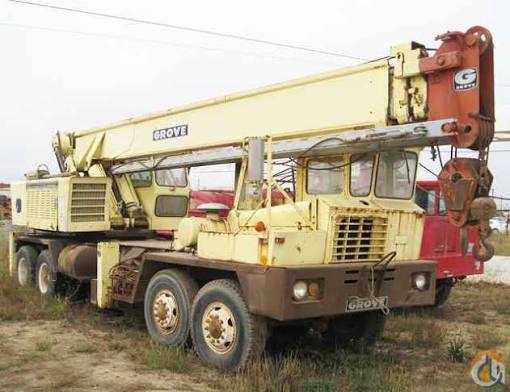

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Voltage | 12 V |
|---|---|
| Tire Size | front 18.00x22.5 rear 11.00x20 |
| Carrier Fuel Capacity | 60.0 gal |
| Upper Structure Hydraulic System Fluid Capacity | 140.0 gal |
| Number of Axels | 3 |
| Alternator Supplied Amperage | 37 A |
| Upper Structure Fuel Capacity | 50.0 gal |
Dimensions
| Transport Height | 141 in |
|---|---|
| Transport Length | 422 in |
| Width w/ Outriggers Extended | 192 in |
| Carrier Length | 325 in |
Transmission
| Max Speed - Forward | 51.8 mph |
|---|---|
| Max Speed - Reverse | 6.4 mph |
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 1 |
| Transmission Type | Fuller |
Boom
| Max Lift Capacity | 50,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 984 in |
| Min Height @ Max Raise Angle | 432 in |
| Max Elevating Angle | 75 ° |
| Number of Sections | 3 |
| Swing Speed | 3 rpm |
| Min Working Radius | 144 in |
| Max Working Radius | 900 in |
CARRIER ENGINE
| Gross Power | 214.8 hp |
|---|---|
| Displacement | 501 in³ |
| Power Measured @ | 3,000 rpm |
| Make | Grove |
| Max Torque | 451 lb-ft |
| Torque Measured @ | 1,600 rpm |
| Number of cylinders | 6 |
UPPER STRUCTURE ENGINE
| Gross Power | 168.0 hp |
|---|---|
| Make | Grove |
| Power Measured @ | 2,800 rpm |
| Torque Measured @ | 2,000 rpm |
| Max Torque | 330 lb-ft |
| Number of cylinders | 8 |
