Grove

TM875

Truck Crane

Max Lift Capacity
159,835 lb
Displacement
855 in³
All truck cranes

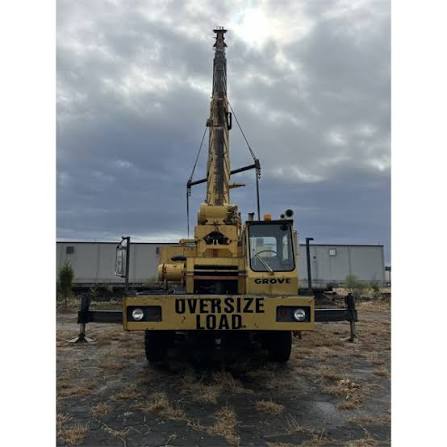

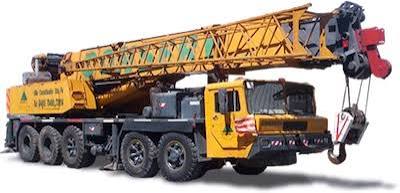

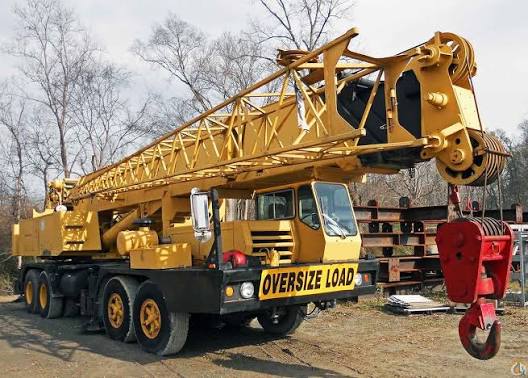

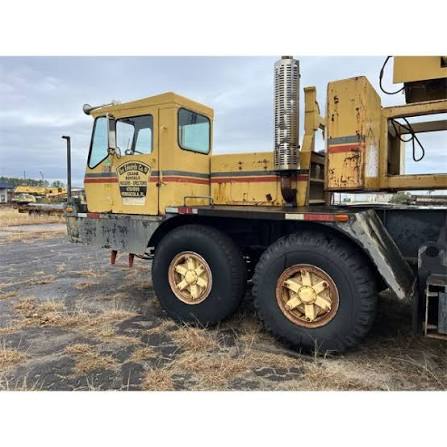

Grove TM875 Truck Crane
1 / 5
Image 1 of 5
Image: gruasyequiposgarcia.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Voltage24 V
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity305.0 gal
Upper Structure Fuel Capacity78.0 gal

Dimensions

Dimensions specifications
Transport Length548 in
Width w/ Outriggers Extended306 in

Transmission

Transmission specifications
Number of Forward Gears13
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity159,835 lb
Max Height @ Max Raise Angle - no jib1,752 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius144 in
Max Working Radius1,320 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power304.0 hp
Displacement855 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque914 lb-ft
Torque Measured @1,500 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power199.0 hp
Displacement555 in³
MakeGrove
Power Measured @3,000 rpm
Torque Measured @1,800 rpm
Max Torque394 lb-ft
