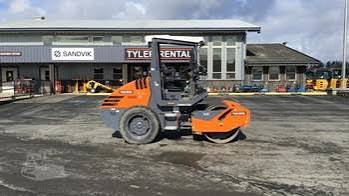

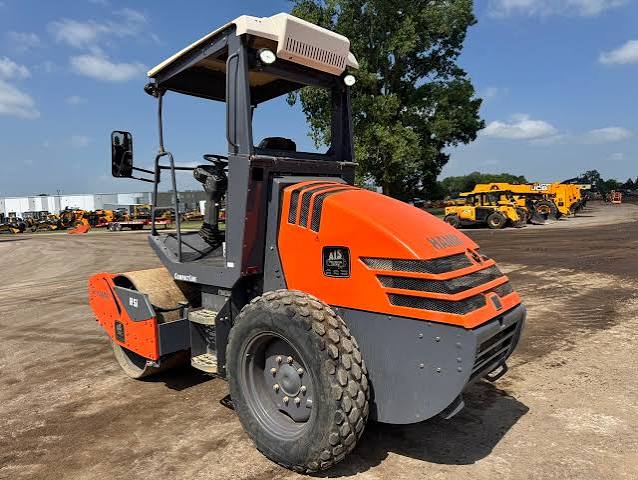

Hamm H5I Soil Compactor
1 / 5
Image 1 of 5
Image: tylerrental.net

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating weight Cabin11,100 lb
Operating weight ROPS10,615 lb
Fuel Capacity32.5 gal
Max Weight13,316 lb
Axle load - front5,787 lb
Axle load - rear5,313 lb

Engine

Engine specifications
Engine ModelV3307-CR-T
Power Measured @2,200 rpm
Number of Cylinders4
Engine MakeKubota
Emissions CertificationEU Stage IIIB / EPA Tier 4
Engine Power - ISO 1439673.3 hp
Engine power@SAEJ134973.3 hp
Exhaust Gas Recirculation (EGR)DOC-DPF

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab114 in
Wheelbase85 in
Overall Length159 in
Turning Radius - Inside133 in
Loadover height114 in
Angle of driving slope-Front43 °
Width over cab59 in
Angle of driving slope-Rear36 °

Drum

Drum specifications
Drum Width54 in
Centrifugal Force - High15,512 lb
Drum Diameter39 in
Nominal Amplitude - High0 in
Static Linear Load9 lb-ft
Vibration Frequency 130 vpm
Drum thickness1 in
Drum Typesmooth

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 12.4-24 8 PR
Speed - transportation gear12.0 mph
Speed - working gear6.0 mph
