Hesston

4910

Baler

Bale Width
47 in
Overall Width
98 in
Overall Width
126 in
Overall Height
145 in
All balers

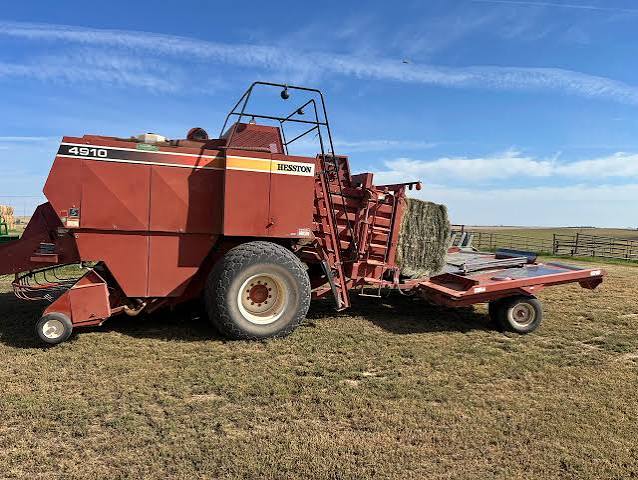

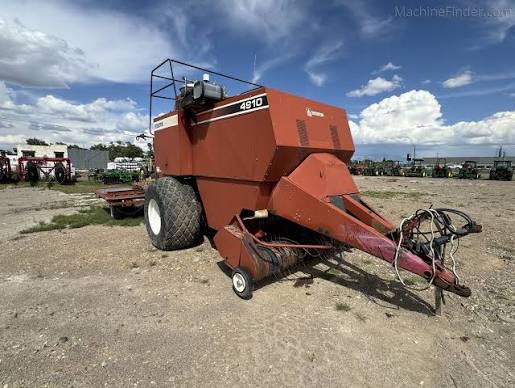

Hesston 4910 Baler
1 / 5
Image 1 of 5
Image: farmequipmentusa.com

Specifications

20 data points

Dimensions

Dimensions specifications
Overall Length285 in
Overall Width126 in
Overall Height145 in
Weight18,607 lb
Tractor PTO Power Required120.0 hp

Bale Size

Bale Size specifications
Bale Width47 in
Bale Length - max108 in
Bale Height50 in

Baler Pickup

Baler Pickup specifications
Overall Width98 in
Number of Bars5
Tine to Tine Width78 in
Number of Tines120
Lift TypeHydraulic Cylinder

Feeding Chamber

Feeding Chamber specifications
Packer TypeFork Type w/ 6 Hard Surfaced Tines
Stuffer TypeFork Type w/ 6 Tines

Plunger

Plunger specifications
SPM25
Stroke Length31 in
Bearing TypeTaper Roller Bearings Sealed Ball Bearing Rollers Sealed

Wrapping System

Wrapping System specifications
Twine Ball Capacity24
Twine Type6 Double Knot Type
