Hesston

8450

Mower Conditioner

Operating Weight w/o Attachment
8,000 lb
Max Speed
15.0 mph
Displacement
239 in³
Power
110.0 hp
All mower conditioners/windrowers

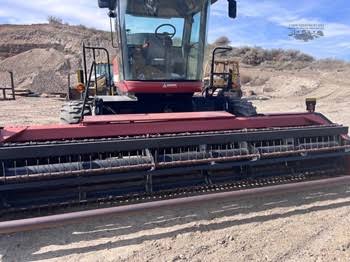

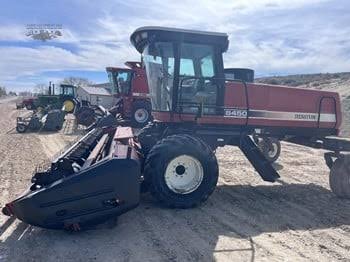

Hesston 8450 Mower Conditioner
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment8,000 lb
Fuel Capacity60.0 gal
Front Tire Size19.5Lx24 bar tread
Rear Tire Size14L-16.1
Alternator Supplied Amperage95 A
Operating Voltage24 V
Hydraulic System Fluid Capacity23.0 gal
Engine Oil Capacity2.8 gal

Engine

Engine specifications
Displacement239 in³
Power110.0 hp
AspirationTurbocharged
Power Measured @2,500 rpm
Engine ModelDiesel 4B T3.9

Dimensions

Dimensions specifications
Ground Clearance38 in
Height - Top of Cab131 in
Wheelbase141 in
Overall Width146 in
Front Wheel Tread Width126 in
Rear Wheel tread Width - max120 in
Rear Wheel Tread Width - min85 in
Length w/ Header258 in

Transmission

Transmission specifications
Max Speed15.0 mph
Final Drive TypeRoller chain/planetary
