Hitachi

EX1200-5C

Mini Excavator

Operating Weight
238,099 lb
Max Digging Depth
313 in
Gross Power
684.0 hp
Net Power
646.0 hp
All mini excavators

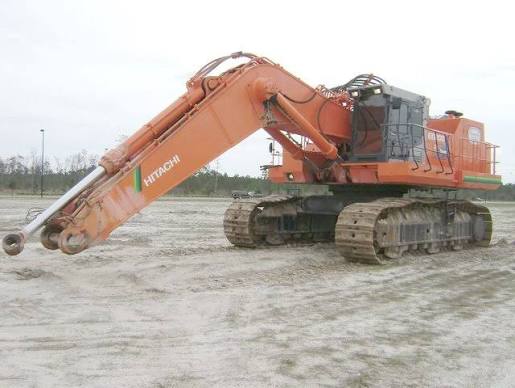

Hitachi EX1200-5C Mini Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

98 data points

Operating Specifications

Operating Specifications specifications
Operating Weight238,099 lb
Hydraulic Pump Flow Capacity16.7 gal/min
Hydraulic System Fluid Capacity356.7 gal
Hydraulic System Relief Valve Pressure4,550 psi
Operating Voltage24 V
Cooling System Fluid Capacity29.9 gal
Swing Speed6 rpm
Swing Drive Fluid Capacity6.7 gal

Engine

Engine specifications
Engine ModelS6R-Y2TAA-2
Power Measured @1,650 rpm
Gross Power684.0 hp
Net Power646.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,200 rpm
Max Torque2,453 lb-ft

Dimensions

Dimensions specifications
Ground Clearance40 in
Length of Track on Ground198 in
Tail Swing Radius192 in
Width to Outside of Tracks182 in
Removal Counterweight Clearance71 in
Upper Structure Ground Clearance71 in
Length of Tracks252 in
Height of Tracks62 in

Undercarriage

Undercarriage specifications
Ground Pressure20 psi
Track Gauge154 in
Number of Track Rollers per Side8
Max Travel Speed2.2 mph
Shoe Size28 in
Number of Shoes per Side52
Number of Carrier Rollers per Side3
Number of Upper Rollers3
Loading Shovel Operating Weight244,713 lb
Loading Shovel Shoe Width28 in
Loading Shovel Ground Pressure20 psi
Number of Lower Rollers8
Backhoe Shoe Width 128 in
Backhoe Operating Weight - Shoe 1238,100 lb
Backhoe Ground Pressure - Shoe 120 psi
Number of Track Shoes per Side52
Tail Swing Radius192 in
Backhoe Shoe Width 235 in
Backhoe Ground Pressure - Shoe 216 psi
Backhoe Operating Weight - Shoe 2242,500 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth313 in
Max Reach Along Ground527 in
Max Vertical Wall Digging Depth200 in
Max Loading Height317 in
Shipping Length of Unit637 in
Max Cutting Height485 in
Shipping Height of Unit226 in

Bucket

Bucket specifications
Reference Bucket Capacity6.61 yd³
Maximum Bucket Capacity9.30 yd³
Minimum Bucket Capacity4.00 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth369 in
Max Cutting Height531 in
Max Loading Height352 in
Max Vertical Wall Digging Depth300 in
Max Reach Along Ground592 in
Shipping Height of Unit226 in
Shipping Length of Unit637 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth410 in
Max Cutting Height552 in
Max Loading Height372 in
Max Reach Along Ground633 in
Max Vertical Wall Digging Depth350 in
Shipping Length of Unit637 in
Shipping Height of Unit226 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth450 in
Max Cutting Height568 in
Max Loading Height408 in
Max Reach Along Ground673 in
Max Vertical Wall Dig Depth408 in
Shipping Length of Unit637 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth206 in
Max Dig Reach451 in
Max Cutting Height487 in
Max Dump Height344 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth313 in
Max Cutting Height485 in
Max Dump Height317 in
Max Reach on Ground527 in
Max Vertical Wall Dig Depth200 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth369 in
Max Cutting Height531 in
Max Dump Height352 in
Max Reach on Ground592 in
Max Vertical Wall Dig Depth300 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth410 in
Max Cutting Height552 in
Max Dump Height372 in
Max Reach on Ground633 in
Max Vertical Wall Dig Depth350 in

Backhoe Boom / Stick 4

Backhoe Boom / Stick 4 specifications
Max Dig Depth450 in
Max Cutting Height568 in
Max Dump Height408 in
Max Reach on Ground673 in
Max Vertical Wall Dig Depth408 in
