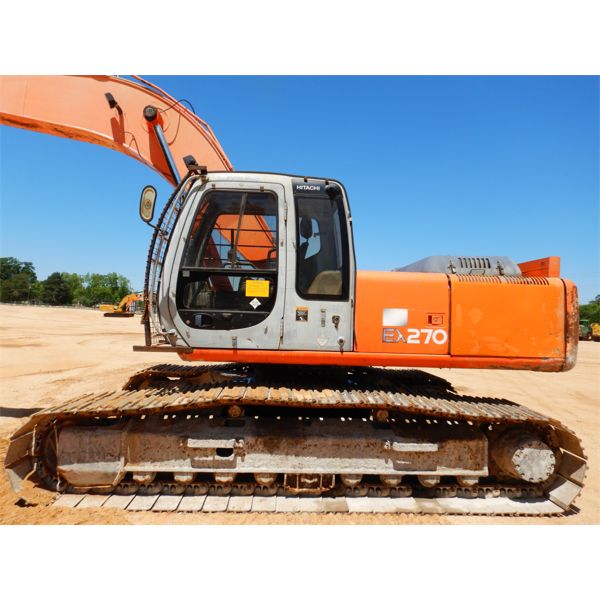

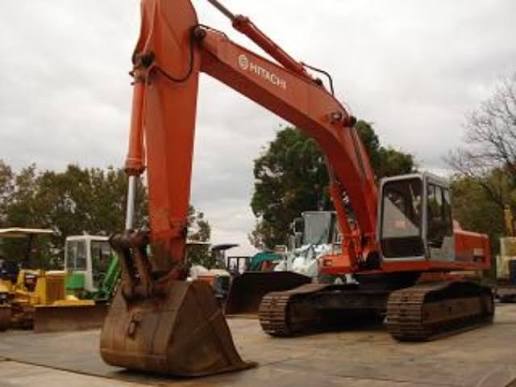

Hitachi
EX270-5
- Operating Weight
- 57,330 lb
- Max Digging Depth
- 258 in
- Max Digging Depth
- 285 in
- Net Power
- 168.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 57,330 lb |
|---|---|
| Fuel Capacity | 100.4 gal |
| Hydraulic Pump Flow Capacity | 110.5 gal/min |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.9 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Swing Drive Fluid Capacity | 4.5 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | H07C-TD |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 2,050 rpm |
| Net Power | 168.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 485 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 146 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 258 in |
|---|---|
| Max Reach Along Ground | 389 in |
| Max Loading Height | 267 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Cutting Height | 380 in |
| Shipping Length of Unit | 409 in |
| Shipping Height of Unit | 135 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.20 yd³ |
| Minimum Bucket Capacity | 1.29 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 285 in |
|---|---|
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 394 in |
| Max Loading Height | 278 in |
| Max Reach Along Ground | 415 in |
| Shipping Length of Unit | 406 in |
| Shipping Height of Unit | 126 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 311 in |
|---|---|
| Max Cutting Height | 403 in |
| Max Loading Height | 289 in |
| Max Vertical Wall Digging Depth | 268 in |
| Max Reach Along Ground | 438 in |
| Shipping Length of Unit | 407 in |
| Shipping Height of Unit | 132 in |
