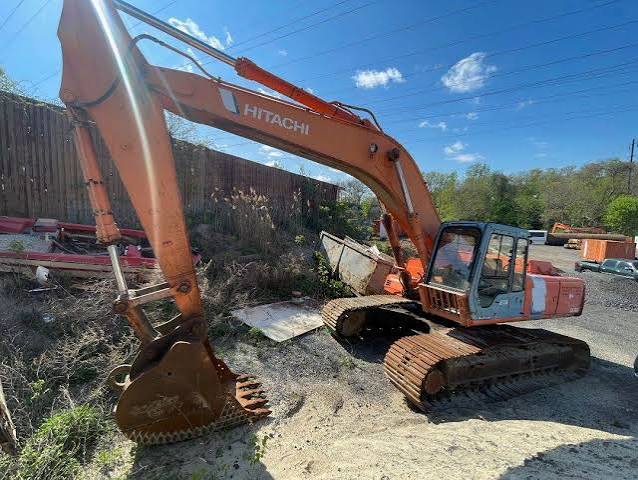

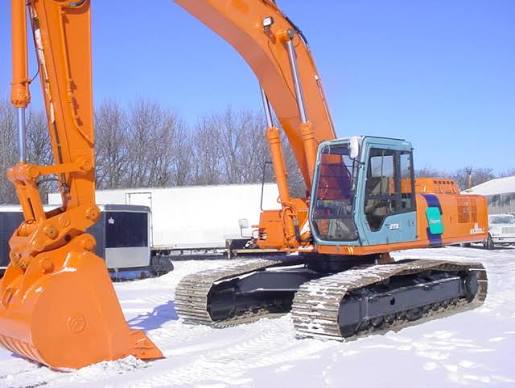

Hitachi
New Holland
E165
Excavator
13 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 68,600 lb |
|---|---|
| Fuel Capacity | 134.8 gal |
| Hydraulic Pump Flow Capacity | 144.3 gal/min |
| Hydraulic System Fluid Capacity | 81.9 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 9.3 gal |
| Cooling System Fluid Capacity | 8.9 gal |
| Swing Drive Fluid Capacity | 4.5 gal |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | A-6SD1TQA |
|---|---|
| Displacement | 600 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 208.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 615 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 292 in |
|---|---|
| Max Reach Along Ground | 430 in |
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 256 in |
| Max Cutting Height | 403 in |
| Shipping Length of Unit | 431 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.50 yd³ |
| Minimum Bucket Capacity | 1.60 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
