Hitachi

ZX110M

Excavator

Operating Weight
28,219 lb
Max Digging Depth
181 in
Max Digging Depth
193 in
Net Power
83.0 hp
All excavators

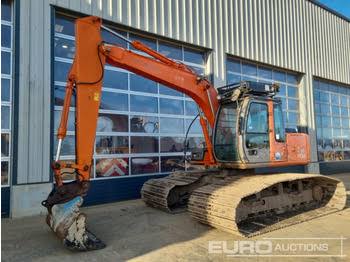

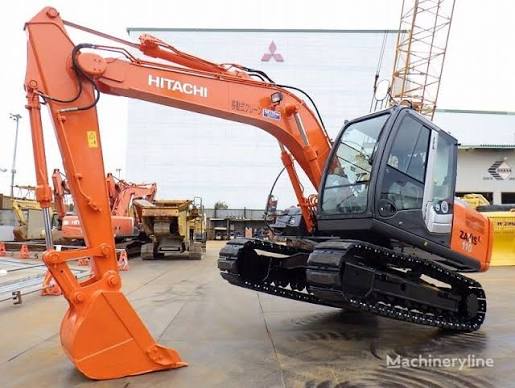

Hitachi ZX110M Excavator
1 / 5
Image 1 of 5
Image: hexindo-tbk.co.id

Specifications

52 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,219 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity52.9 gal/min
Hydraulic System Fluid Capacity34.4 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity4.2 gal
Cooling System Fluid Capacity5.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.9 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelBB-4BG1T
Displacement270 in³
Power Measured @2,150 rpm
Net Power83.0 hp
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque251 lb-ft

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab117 in
Length of Track on Ground119 in
Tail Swing Radius84 in
Width to Outside of Tracks108 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge80 in
Number of Track Rollers per Side6
Max Travel Speed2.7 mph
Shoe Size28 in
Number of Shoes per Side42
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth181 in
Max Reach Along Ground285 in
Max Loading Height226 in
Max Vertical Wall Digging Depth163 in
Max Cutting Height322 in
Shipping Length of Unit284 in
Shipping Height of Unit117 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth193 in
Max Vertical Wall Digging Depth175 in
Max Cutting Height328 in
Max Loading Height233 in
Max Reach Along Ground298 in
Shipping Length of Unit284 in
Shipping Height of Unit117 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth215 in
Max Cutting Height339 in
Max Loading Height244 in
Max Vertical Wall Digging Depth196 in
Max Reach Along Ground317 in
Shipping Length of Unit284 in
Shipping Height of Unit117 in
