Hyster
Nissan
AF35
Forklift
33 specifications
1 / 5

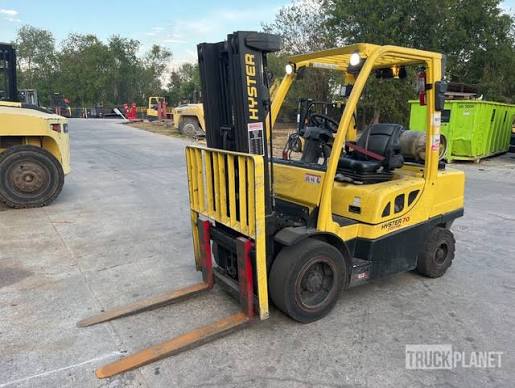

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 10,357 lb |
|---|---|
| Max Speed | 12.4 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Pneumatic |
| Drawbar Pull | 4,465 lb |
| Fuel Capacity | 13.9 gal |
| Hydraulic System Relief Valve Pressure | 2,250 psi |
| Front Tire Size | 28 x 9 - 15 |
| Rear Tire Size | 6.50 x 10 |
| Axle load - front | 3,810 lb |
| Axle load - rear | 6,547 lb |
| Hydraulic Tank | 12.1 gal |
Engine
| Engine Model | PSI 2.4L |
|---|---|
| Displacement | 143 in³ |
| Power Measured @ | 2,700 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 2,000 rpm |
| Power | 59.0 hp |
| Fuel Type | LPG |
| Torque | 121 lb-ft |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Wheelbase | 67 in |
| Overall Width | 47 in |
| Turning Radius | 95 in |
| Overall Height - mast lowered | 89 in |
| Length to Fork Face | 108 in |
| Gradeability | 22.0 % |
| Height to Top of Overhead Guard | 86 in |
| Max Fork Height | 127 in |
| Right Angle Stack | 113 in |
Brakes & Steering
| Service brake | Foot/Hydraulic |
|---|---|
| Parking brake | Hand/Mechanical |
Mast
| Load Capacity | 7,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.2 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 6 ° |
| Lower Speed | 1.1 mph |
