Hyundai
Cukurova
CF25FX
Forklift
Specifications pending
1 / 5

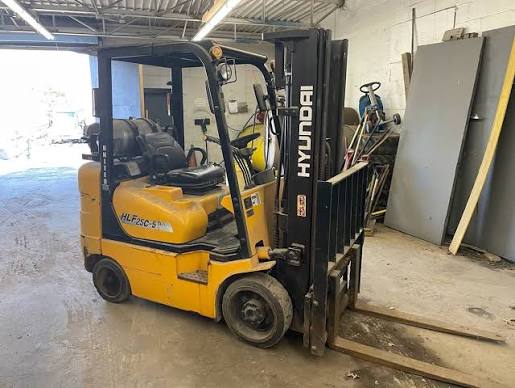

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Max Speed | 12.8 mph |
|---|---|
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
Engine
| Engine Model | 4G64-33HL |
|---|---|
| Displacement | 144 in³ |
| Power Measured @ | 2,500 rpm |
| Torque Measured @ | 1,600 rpm |
| Power | 50.0 hp |
| Torque | 123 lb-ft |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 55 in |
| Overall Width | 42 in |
| Turning Radius | 83 in |
| Overall Height - mast lowered | 85 in |
| Length to Fork Face | 89 in |
| Height to Top of Overhead Guard | 83 in |
| Max Fork Height | 131 in |
Mast
| Load Capacity | 5,512 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 4.0 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 3.7 mph |
