International

1460

Combine

Operating Weight w/o Attachment
19,687 lb
Fuel Capacity
92.5 gal
Displacement
436 in³
Power
170.1 hp
All combines/harvesters

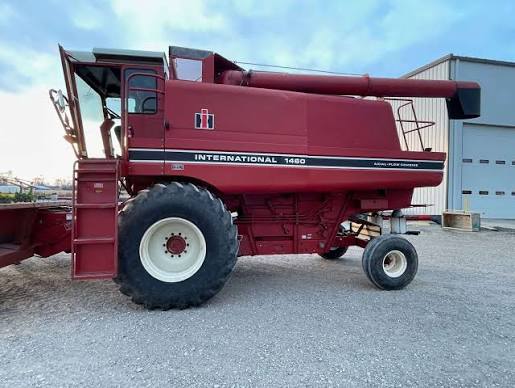

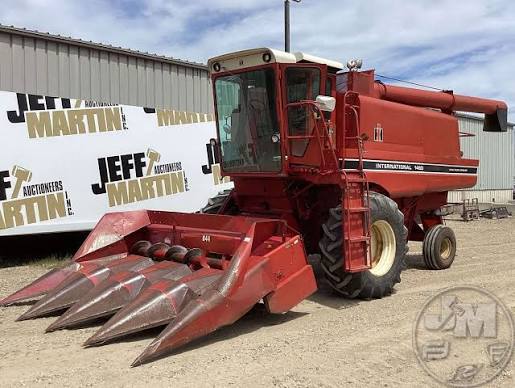

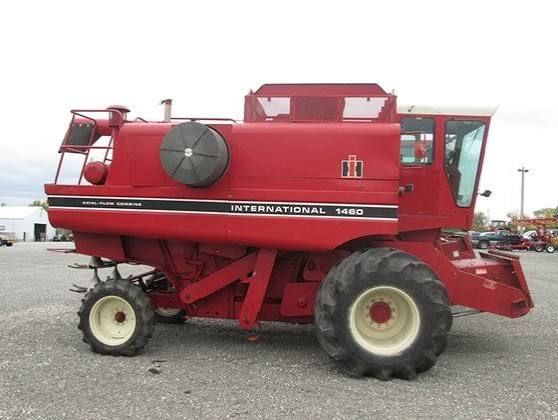

International 1460 Combine
1 / 5
Image 1 of 5
Image: tractorpartsasap.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment19,687 lb
Fuel Capacity92.5 gal

Engine

Engine specifications
Engine ModelDT-436
Displacement436 in³
Power Measured @2,500 rpm
Number of Cylinders6
Engine MakeInternational
Power170.1 hp

Dimensions

Dimensions specifications
Wheelbase138 in
Transport Width183,072 in
Transport Height156 in
Transport Length327 in
Unloader clearance142 in
Unloader reach108 in

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size10.0 x 16 6-ply
Front Tires Size23.1 x 26 R 1 10-ply

Cleaning System

Cleaning System specifications
Cleaning Fan Speed - High1,010 rpm
Cleaning Fan Speed - Low360 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity1,675.7 gal
Unloading Discharge Height149 in

Separating

Separating specifications
Separating Area1,724 in³

Threshing

Threshing specifications
Rotor Diameter34 in
Rotor Length108 in
Rotor Speed - High1,320 rpm
Rotor Speed - Low330 rpm
Concave Area1,181 in³

HEADER

HEADER specifications
Width - Table156 in
Auger diameter20 in
HEADER TypeCentre feed
Conveyor speed9,144.0 mph
Lowering timeAdjustable
