JCB

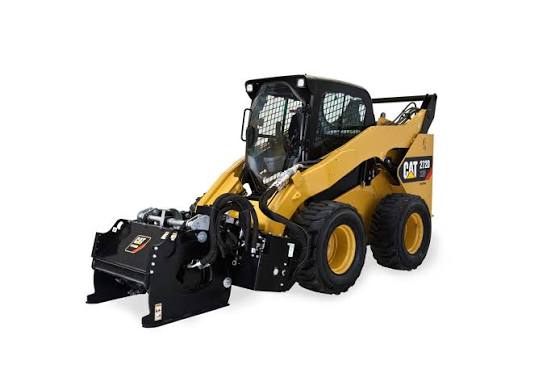

Caterpillar
272D
Skid Steer Loader
74 specifications
1 / 5
Image 1 of 5
Specifications
65 data points
Operating Specifications
| Operating Weight | 18,225 lb |
|---|
Engine
| Engine Model | Kohler - KDI2504TCR/26A |
|---|---|
| Displacement | 2,482 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 73.8 hp |
| Aspiration | Turbo |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 221 lb-ft |
| Alternator | 100 A |
| Emissions Certification | EPA-T4F (EU St3B) |
| Cooling system | Diesel |
| Battery | 12 V |
| Fuel | Diesel |
| Starter motor | 2.0 hp |
| Engine oil service interval | 500 h |
| Hydraulically driven cooling fan | Yes |
Hydraulic System
| Pump Flow Capacity | 18.5 gal/min |
|---|---|
| Relief Valve Pressure | 484 psi |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 43 in |
| Overall Length | 138 in |
| Width Over Tires | 60 in |
| Overall Height | 78 in |
| Dump Height | 90 in |
| Angle of departure | 25 ° |
| Dump angle | 42 ° |
| Loadover height | 111,811 in |
| Reach @ ground level | 43 in |
| Pin height | 119 in |
| Dig Depth | 394 in |
| Rollback - Ground Level | 30 ° |
| Max. reach @ full height | 48 in |
| Rear chassis turning radius | 66 in |
| Bucket corner Turning radius | 83 in |
| Quick hitch Turning radius | 46 in |
Transmission
| Travel Speed | 7.5 mph |
|---|
Fluid Capacities
| Fuel Tank | 24.4 gal |
|---|---|
| Hydraulic system | 11.5 gal |
| Engine Oil | 2.0 gal |
| Engine coolant | 2.7 gal |
Tires & Wheels
| Standard | 10 x 16.5 - 8 PR Xtra Wall Off Road |
|---|
General Specifications
| Operating Weight lbs (kg) | 16,391 (7,437) Starting 2004 Model Year |
|---|---|
| Lift Capacity lbs (kgs) | 6,285 (2,852) Starting 2004 Model Year |
| Engine Power HP (KW) | 74 (55) Starting 2019 Model Year |
| Operating Width IN. (CM) | 66 (168) Starting 2024 Model Year |
| OPERATING LOAD LBS. (KG) | 2,158 (979) Starting 2017 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 2112 (958) Starting 2019 Model Year |
| Rated Operating Capacity LBS. (KG) | 2,112 (958) Starting 2025 Model Year |
| 4th Gear Fwd mph (kmh) | 20 (32.2) Starting 2004 Model Year |
| Breakout Force lbs (kgs) | 12,000 (5,445) Starting 2004 Model Year |
| Digging Depth ft (m) | 16.3 (4.95) Starting 2004 Model Year |
| Loading Height ft (m) | 12 (3.66) Starting 2004 Model Year |
| SAE Net hp (kW) | 92 (68.6) Starting 2004 Model Year |
Backhoe
| Max Digging Depth | 240 in |
|---|---|
| Loading Height | 159 in |
Loader
| Bucket Capacity | 0.50 yd³ |
|---|---|
| Lift Capacity | 6,900 lb |
| Operating Load Rating | 2,158 lb |
| Operating Width | 65 in |
| Breakout Force | — |
| Bucket Width | 66 in |
| Loader lift capacity with bucket | 4,592 lb |
| Tipping load - no counterweight | 4,222 lb |
| SAE - Net | 92.0 hp |
Travel Speed
| 4th Gear Fwd | 20.3 mph |
|---|
