JCB
Caterpillar
C6500
Forklift
27 specifications
1 / 5

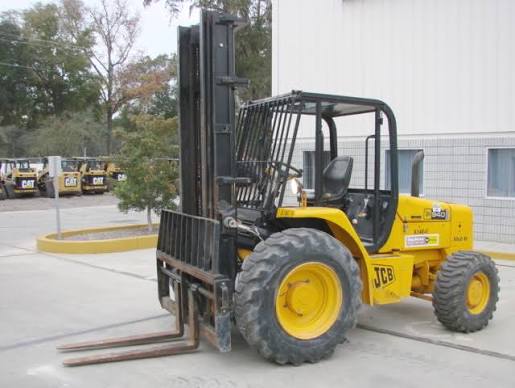

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 16,535 lb |
|---|---|
| Max Speed | 18.0 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
Engine
| Engine Model | JCB ECOMAX TCAE-55 |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,300 rpm |
| Bore | 4 in |
| Stroke | 5 in |
| Power | 74.0 hp |
| Torque | 295 lb-ft |
| Cooling system | Liquid |
| Fuel | Diesel |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 88 in |
| Overall Width | 88 in |
| Overall Height - mast lowered | 101 in |
| Length to Fork Face | 144 in |
| Height to Top of Overhead Guard | 102 in |
| Max Fork Height | 180 in |
| Angle of departure | 53 ° |
Transmission
| Transmission Type | Syncroshuttle |
|---|---|
| Gear type | Manual |
| Shuttle (Forward-Reverse) | Power shuttle |
| Torque converter | 2.20:1 |
Fluid Capacities
| Fuel Tank | 23.3 gal |
|---|---|
| Engine Oil | 3.2 gal |
| Engine coolant | 4.5 gal |
| Hydraulic oil tank | 15.9 gal |
Mast
| Load Capacity | 8,000 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 0.5 mph |
| Mast Tip Forward | 18 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 0.8 mph |
| Number of Mast Sections | 3 |
Electrical System
| Battery | 120 Ah |
|---|---|
| Voltage | 12 V |
