JCB

JS260LC

Excavator

Operating Weight
56,978 lb
Max Digging Depth
226 in
Max Digging Depth
243 in
Net Power
187.8 hp
All excavators

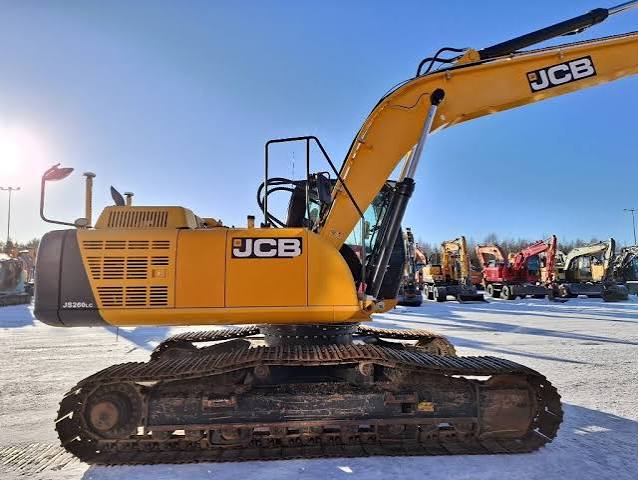

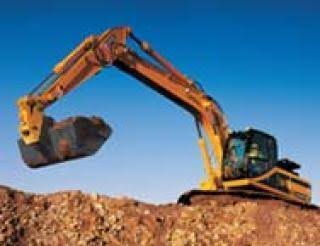

JCB JS260LC Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

82 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,978 lb
Fuel Capacity90.7 gal
Hydraulic Pump Flow Capacity114.2 gal/min
Hydraulic System Fluid Capacity63.7 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity6.9 gal
Cooling System Fluid Capacity7.1 gal
Swing Drive Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelIsuzu 4HK1X European Tier 4i emissions compliant
Displacement317 in³
Power Measured @2,000 rpm
Net Power187.8 hp
AspirationTurbocharged
Engine MakeIsuzu
Engine TypeWater cooled 4-stroke 4-cylinder in-line direct injection turbocharged diesel.
Alternator50 A
Cooling systemWater cooled via large capacity radiator
Battery2 x 12 V
Max Digging Reach404 in

Hydraulic System

Hydraulic System specifications
Main pump type2 variable displacement axial piston type

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Length of Track on Ground151 in
Tail Swing Radius119 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in
Track Gauge102 in
Undercarriage Overall Length183 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size28 in
Number of Carrier Rollers per Side2
Number of Upper Rollers2
Number of Lower Rollers9

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth226 in
Max Reach Along Ground354 in
Max Loading Height243 in
Max Vertical Wall Digging Depth178 in
Max Cutting Height349 in
Shipping Length of Unit397 in
Shipping Height of Unit126 in
Minimum swing radius158 in
Max Digging Reach362 in
Max.Dumping Height243 in
Max Digging Height349 in
Bucket rotation180 °
Maximum vertical wallcut depth178 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity2.00 yd³
Minimum Bucket Capacity1.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth243 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height364 in
Max Loading Height256 in
Max Reach Along Ground373 in
Shipping Length of Unit397 in
Shipping Height of Unit127 in
Minimum swing radius157 in
Max Digging Reach380 in
Max.Dumping Height256 in
Bucket rotation180 °

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth268 in
Max Cutting Height379 in
Max Loading Height270 in
Max Vertical Wall Digging Depth245 in
Max Reach Along Ground395 in
Shipping Length of Unit393 in
Minimum swing radius152 in
Max.Dumping Height270 in
Bucket rotation180 °

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth285 in
Max Cutting Height389 in
Max Reach Along Ground415 in
Max Loading Height278 in
Max Vertical Wall Dig Depth263 in
Shipping Length of Unit395 in
Minimum swing radius153 in
Max Digging Reach421 in
Max.Dumping Height278 in
Bucket rotation180
